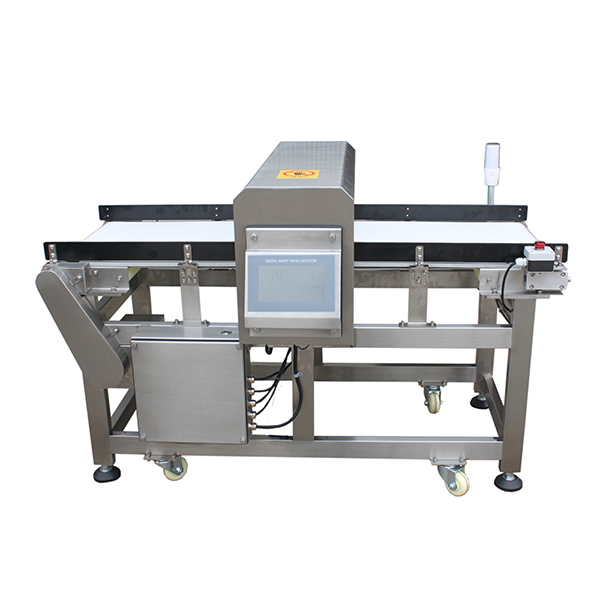

XR-506-1 Metal Detector Conveyor

Juzheng XR-506-1 series metal detector conveyor with digital LCD screen provides a reliable safety inspection solution for various industries, like food (bread, steamed bread, dumplings, biscuits, and bun), medicine, toy, clothing, shoe, chemical, leather, and fabric, etc. As an essential tool in food and cloth production, the metal detection system enhances products' security by picking iron and non-ferromagnetic metal out from raw materials. Nonferrous metal like iron, copper, aluminum and stainless steel can be detected.

As a professional metal detector manufacturer in China, Juzheng provides a complete range of security screening solutions for customers in different fields.

Main Features
1. Core part of the conveyor is made from imported chips with advanced digital technology. Detection coil formed in one shot by filling features high accuracy, stable performance, and powerful anti-interference capability.
2. We provide metal detectors came with different frequencies according to users' specific needs. Our detector can be designed to store detection data of up to 100 different products.
3. With an intelligent recognition technology, the system is able to learn and record varied products' features

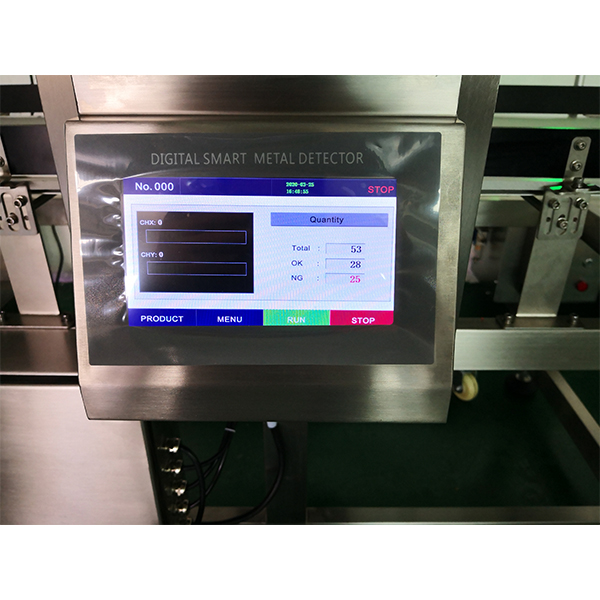

4. Users can set the parameters easily through a user-friendly interface and touch screen. Once set, the metal detecting machine can run at high working accuracy without the need of readjustment. Products with diversified characteristics can be detected.
5. Modular design enables easy maintenance job.
6. The system is in line with HACCP, GMP, and FDA standards.
7. It is waterproof, vibration-proof, and noise-absorbing, making it applicable in harsh working environment. The dust-proof and waterproof performance is in compliance with IP-66/IP-65 standards.

8. Removal devices like putter and flap plate are optional. Our food inspection system can be designed into portable type, load-bearing type, or designed for large package inspection.

Specification

Model		XR-506-1
Machine type		Standard			Nonstandard (special specification)
Tunnel width (mm)		400			500- (customized)
Tunnel height (mm)		100	120	150	200	250	300	350	400
Standard detection sensitivity	diameter of iron ball (Φ mm)	≥0.6	≥ 0.8	≥ 1.0	≥ 1.2	≥ 1.5	≥ 2.0	≥ 2.5	≥ 3.0
	diameter of balls made of non-ferrous metal like copper and aluminum (Φ mm)	≥1.2	≥ 1.2	≥ 1.5	≥ 1.5	≥ 2.5	≥ 3.0	≥ 4.0	≥ 4.5
	304 stainless steel ball (Φ mm)	≥1.2	≥ 1.5	≥ 2.0	≥ 2.0	≥ 2.5	≥ 3.0	≥ 4.0	≥ 4.5
Alerting manner		stop automatically once a metal foreign body is detected; the buzzer alarms or pick the metal objects out
Machine material		machine frame is made from 304 stainless steel; in line with HACCP, GMP, FDA, and CAS standards
Machine dimension (mm)		1330 ×750 ×1100 (L×W×H)
Machine weight		about 180KG
Remarks: the parameters listed above are tested without taking into account the environmental interference. The actual performance may be subject to working environment and components of the products to be tested
