    Introduce：
    14 head 2.5L waterproof multi-head weigher packing machine is suitable for weighing Confectionery/peanuts/snack/chips/nuts/jelly/flakes/cookies/bakery/coffee beans/pet foods/dry granule or small hardwares, etc.

    Online Message

    Product Introduction

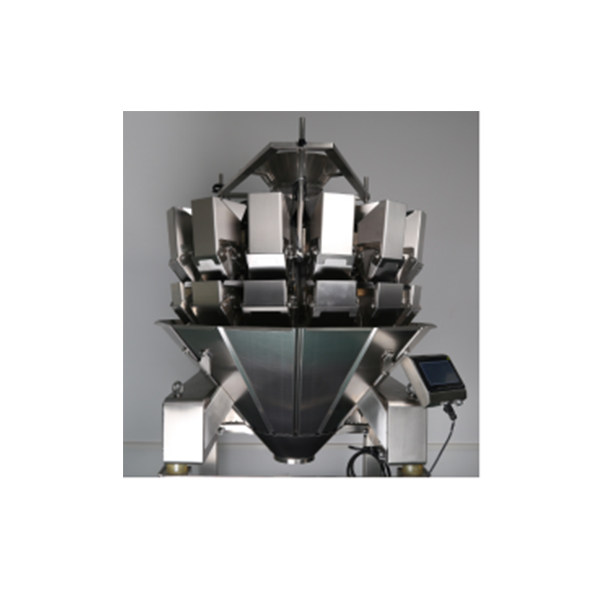

    14 head 2.5L waterproof multi-head weigher packing machine for candy potato chips and nuts

    1. Application

    It is suitable for weighing Confectionery/peanuts/snack/chips/nuts/jelly/flakes/cookies/bakery/coffee beans/pet foods/dry granule or small hardwares, etc.

    2. Main Features:

    ◆ Waterproof machine frame

    ◆ Mold hoppers can be change with each other.

    ◆ High speed stagger dump function.

    ◆ User-friendly help menu in touch screen contributes to easy operation

    ◆ 100 programs for multiple tasks.

    ◆ Program recovery function can reduce operation failure.

    ◆ High precision digital load cell.

    ◆ Linear amplitude can be adjusted independently.

    ◆ No products auto pause function can improve weighing stability and accuracy.

    ◆ Modular control system, AD cards no need Number, can be interchangeable.

    ◆ New actuaor design reduces the mechanical vibration and improves the accuracy of load cell.

    ◆ Each drive board is independent, can be changed freely, even in different weighers.

    ◆ Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

    ◆ Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.

    ◆ The software versatility, strong compatibility, different weighers using the same control system.

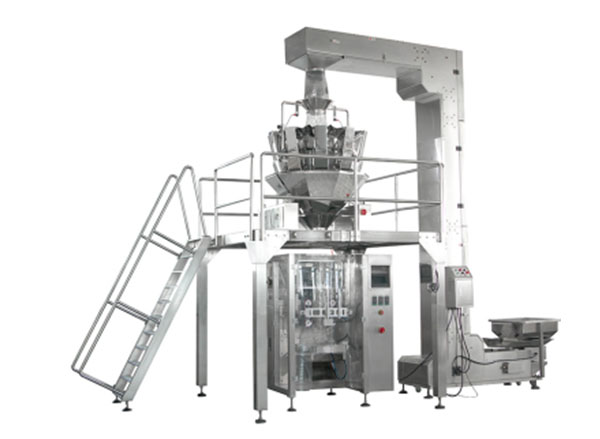

    waterproof multi-head weigher packing machine


    Specification

    3. Technical Specification

    Model

    XR-1A14(25)

    Single Weighing range

    10-2000 gr

    Avg. Accuracy

    0.5~2 gr

    Production wpm

    120 wpm

    Control panel

    7 inch color touch screen

    Hoppers Volume

    2.5L (double-door), plain plate/dimple plate

    Construction material

    304 Stainless Steel

    Driving system

    Step Motor

    Control system

    Modular control system

    Power requirement

    AC 220V/110V ±10%50Hz（60Hz）1400W

    Options

    Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device

    Packaging dimension (mm)

    L1720*W1100*H1130mm

    Gross weight

    500kg
