Product Introduction

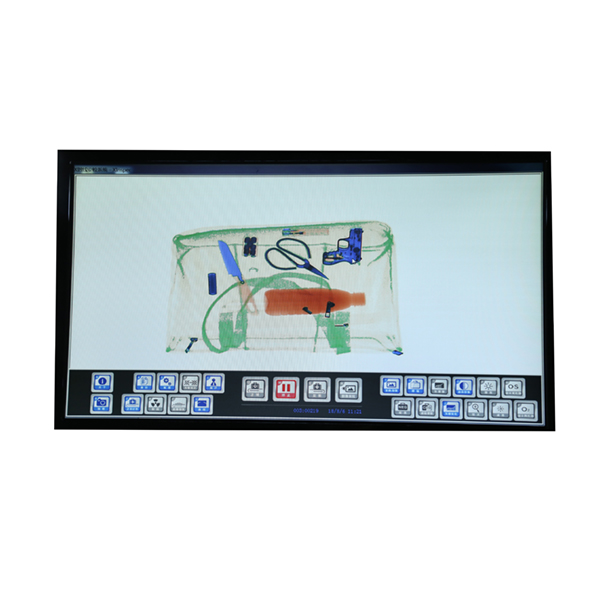

1. Multi-energy X-ray tomography: Orange for the organic items, blue for inorganics and green for mixtures.
2. Available in high-energy or low-energy switch, and the system helps to detect drugs and powder explosives.
3. X-ray sensor: Linear X-ray photodiode detector array (multi-energetic), 12bit Deep.

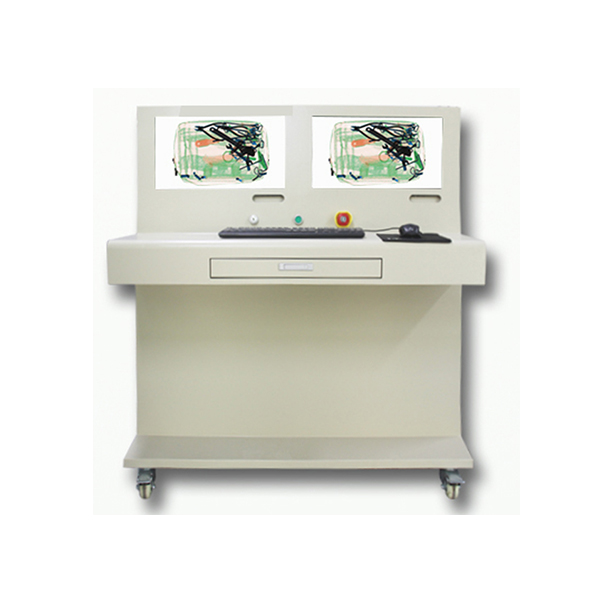

4. Monitor display: High resolution color, 17-inch LCD display.
2. Available in high-energy or low-energy switch, and the system helps to detect drugs and powder explosives.
3. X-ray sensor: Linear X-ray photodiode detector array (multi-energetic), 12bit Deep.
4. Monitor display: High resolution color, 17-inch LCD display.
5. Image processing: The security screening system features edge enhancement, switch of sharp/poor color contrast, less dark, image saving, image retrieval.
Specification
| Passageway size | 800(W)*650(H)mm |
| Conveyor speed | 0.22m/s |
| Rated load of conveyor | 200kg |
| X-ray volume for single inspection | < 1.7μGy/h |
| Resolution | < 0.0787mm cooper wire |
| Spatial resolution | Horizontal: 1.0mm, vertical: 1.0mm |
| Penetration resolution | 0.254mm |
| X-ray penetration | ≥ 38-40mm steel plate |
| Film safety | Guarantee ISO1600 Film |
| X-ray leakage | < 0.05μGy/h |
| Image grey level | 4096 |
| Max image resolution | 1024 * 1280 pixel |
| Image processing | 24bit real time-processing |
| Storage temperature/humidity | -20°C-60°C/20%-95%(condensable) |
| Operation power | 220VAC(±10%)50±3Hz |
| Power consumption | 1.0 KW (max), 1.0KW ，noise: < 55db |
| Warranty | 24 months |
| Certification | CE/ROHS/ISO9001 |
| Color | Grey |
| Supply capacity | 35 Sets/week |
| Package | Strong wooden box |
Security Checking Machine Videos
Application
Juzheng offers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.
These events include but are not limited to: Dongguan Railway Station, Municipal Court, Provincial Museum, Provincial Gymnasium, the 2017 Ninth China International Fair and the Africa World Cup etc.
These events include but are not limited to: Dongguan Railway Station, Municipal Court, Provincial Museum, Provincial Gymnasium, the 2017 Ninth China International Fair and the Africa World Cup etc.
Juzheng has shown the world China’s high-tech security products, while thousands sets of x-ray security screening System equipment and services are being delivered to venues, media centers and logistic warehouses.
