Product Introduction

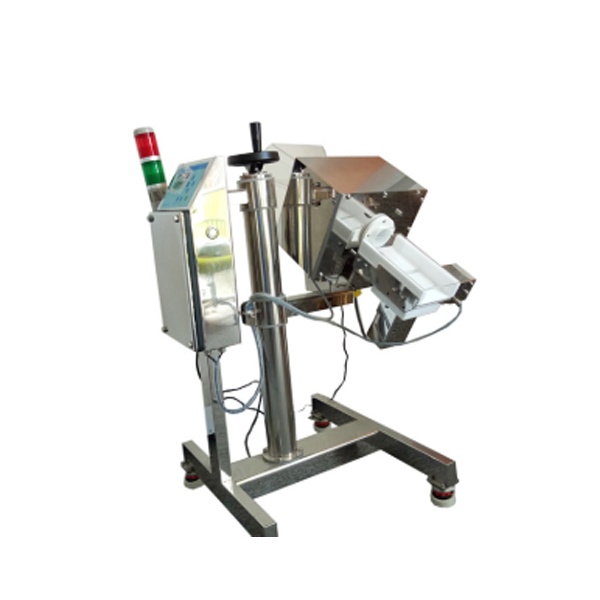

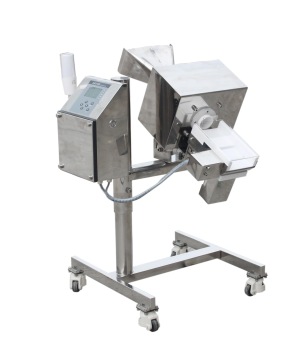

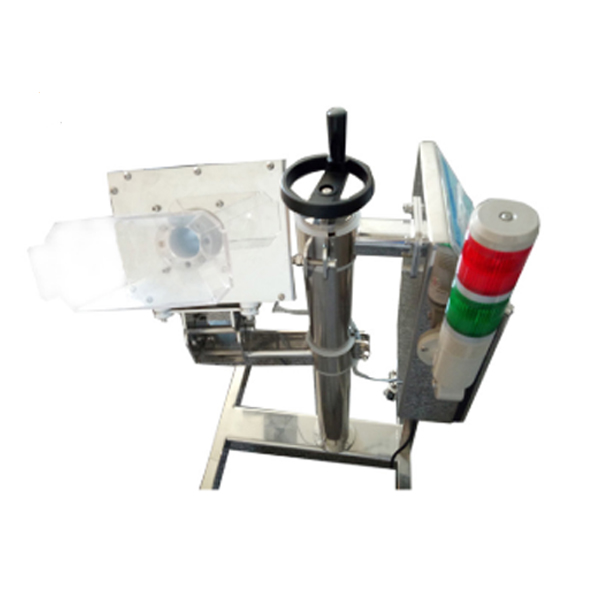

XR-120C Pipeline Pharmaceutical Capsule Metal Detector Separator Machine
Introduction:
Pipeline Pharmaceutical Capsule Metal Detector Separator Machine adopts German technology, it has stable performance. Specifically designed for the pharmaceutical and health care industry and it has the rapid integration and removal of metal foreign body detection system
Product features:
1.Processing speed can reach about 15000 pellets per minute
2.It can handle a variety of categories of drugs, in order to save space, it take a more compact frame design
3.The food grade PVC material is used in the automatic sorting device;
4.The detection sensitivity is higher than the industry standard, the highest can be detected is greater than the diameter of 0.3mm ball;
5.The sensitivity can be adjusted according to the characteristics of the product, and the number of detection and elimination can be recorded in real time;Manual clear record
6.All stainless steel structure, waterproof (IP66), anti vibration, strong adaptability to the environment and temperature changes, easy to clean;
7.Modular component replacement, it’s easy to maintain
8.Multi language function selection (Chinese, English, Korean, Japanese, etc., other languages can be customized according to demand);
9.Comply with HACCP, GMP, GAMP, FDA, IFS, ISO9001 and other related certification standards.
Specification
Technical Parameters:
Optional 1 (XR-120C High Accuracy)
Model |
Pipe Diameter (mm) |
Sensitivity (Fe/mm) |
Sensitivity (Non-Fe/mm) |
Sensitivity (SUS/mm) |
Max Capacity (pc/min.) |
Adjustable angle |
Input height adjustment |
Output height adjustment |
XR-120C-50 |
50 |
Φ 0.2 |
Φ 0.3 |
Φ 0.4 |
12,000 |
30°- 40 |
Max 800+150mm |
Max 350+150mm |
Optional 2 (XR-160C Standard Accuracy)
Model |
Pipe Diameter (mm) |
Sensitivity (Fe/mm) |
Sensitivity (Non-Fe/mm) |
Sensitivity (SUS/mm) |
Max Capacity (pc/min.) |
Adjustable angle |
Input height adjustment |
Output height adjustment |
XR-160C-30 |
30 |
Φ 0.2 |
Φ 0.3 |
Φ 0.4 |
9,000 |
30°- 40° |
Max 800+150mm |
Max 350+150mm |
XR-160C-50 |
50 |
Φ 0.3 |
Φ 0.4 |
Φ 0.6 |
12,000 |
30°- 40 |
Max 800+150mm |
Max 350+150mm |
XR-160C-70 |
70 |
Φ 0.7 |
Φ 0.8 |
Φ 1.2 |
15,000 |
30°- 40 |
Max 800+150mm |
Max 350+150mm |
Application
