  • XR-600 X Ray Foreign Body Inspection Machine X-Ray Inspection System

    Introduce:
    X Ray Impurity Inspection Machine, X Ray Impurity Scanner, X Ray Impurity Detection Machine

    Online Message

    Product Introduction

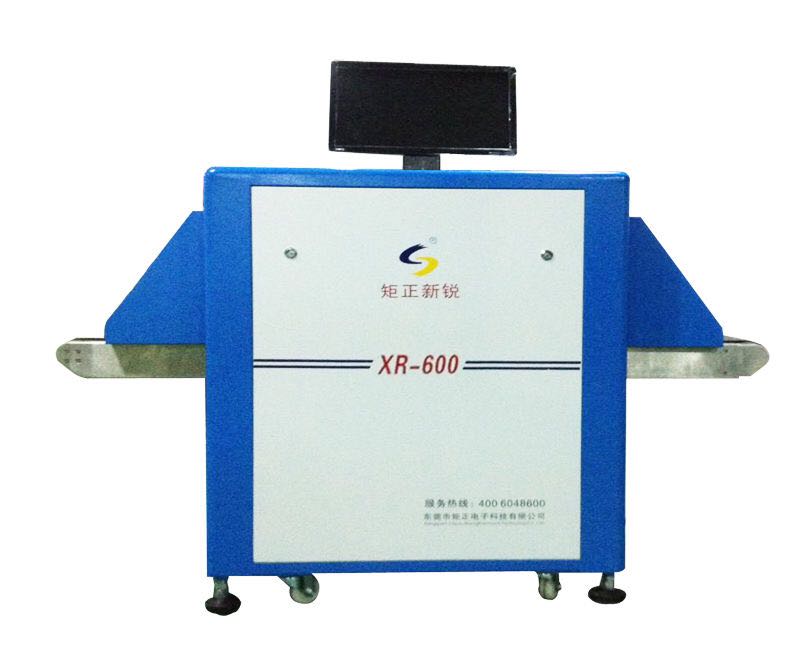

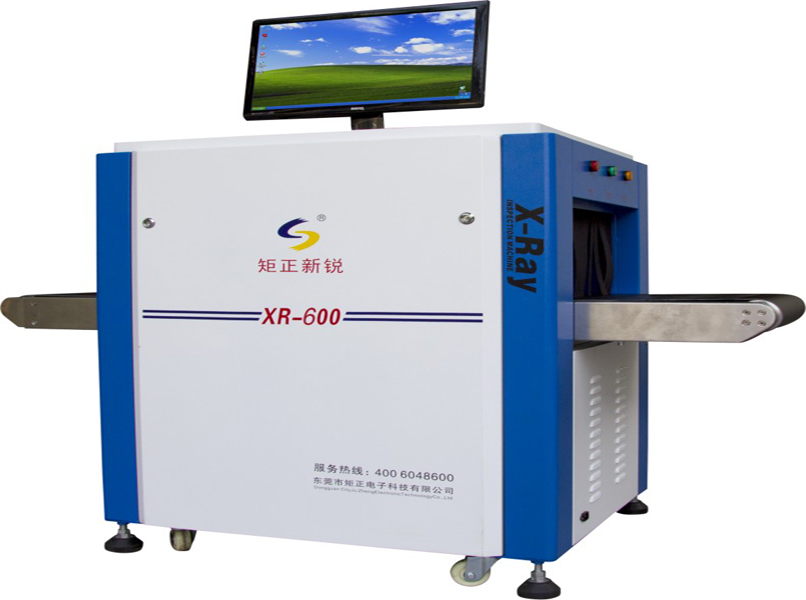

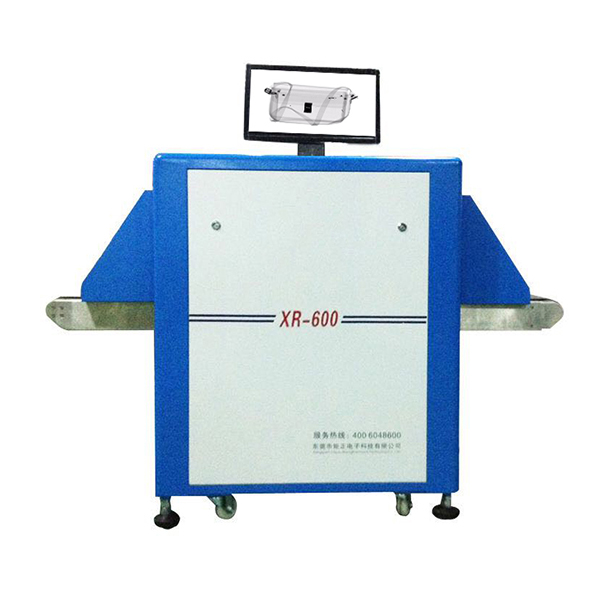

    The Juzheng XR-600 X Ray Impurity Inspection Machine is an advanced x ray machine with features such material discrimination,TIP functionality etc.

    The Juzheng XR-600 X Ray Impurity Inspection Machine offers high-resolution image with superior image processing functions and excellent detection capabilities. 6040 x ray baggage scanner is ideal system for hotels, convention centers, malls etc. and event-based security environments.

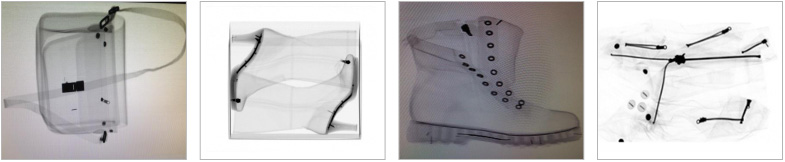

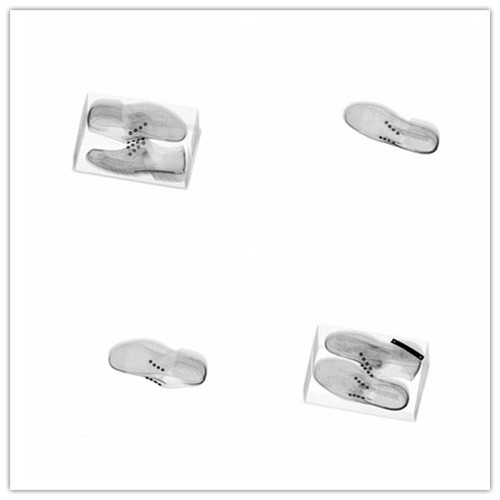

    XR-600 X-Ray Inspection System Screening Images

    XR-600 X-Ray Inspection System screening images


    X Ray Inspection System Videos

    Specification

    Passageway size 505mm (W) * 305mm (H)
    Machine dimension 1650*780*1200mm
    Conveyor height 700-800mm
    Conveyor speed 0.22 m/s
    Rated conveyor load 110 kg
    X-ray volume for single inspection < 1.5 μ GNy
    X-ray penetration 43mm-thick steel plates
    X-ray leakage 0.752 μ Gy/h; in line with national health and safety requirements on radiation devices
    Voltage AC220V, 50 ± 3Hz
    X-ray tube voltage KV 100~160 (adjustable)
    Power 0.3kw/h
    Working environment temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas)
    Noise ≤ 57dB

    Application

    XR-600 X-Ray Inspection System Application

    Main Components

    Manufacturing

    Our Customers

    Certifications
