Product Introduction
Introduction Production:
1. Infrared detector, digital circuit design, anti-interference.
2. The function of statistics: The number of passed examinees and the alarm times can be count.
3. Esily to operate: The operation panel is covered by thin plastic, bright light alarm can show the warning zone directly and find the precise position of target metal.
4. Both light and auditory alarm, can make the warning clearly. Improve work efficiency.
5. No harm to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes.
6. Location signal display light:Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.
Security Checking Machine Videos
Specification

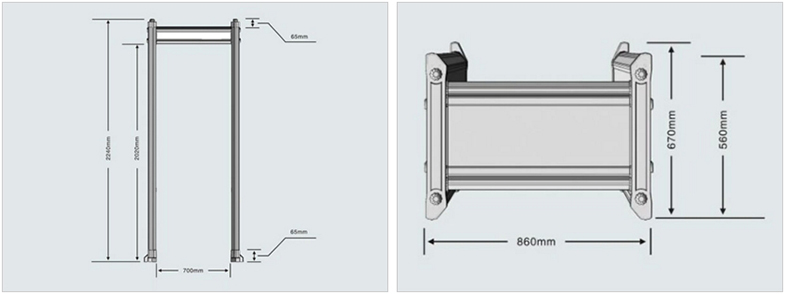

Detector dimension | 2240x670x860mm |
Passageway size | 2000x700mm |
Main chassis size | 755x435x255mm |
Panel size | 2290mmx715mmx200mm |
Main chassis/panel net weight | 67kg |
Main chassis/panel gross weight | 75kg |
Voltage | 210V~240V50/60Hz |
Power | 25W |
Frequency range | 1 -50 bands |
Environment temperature | -20 ℃~55 ℃ |
Space required | 100cm* 200cm (W*L) |
Metal detection accuracy | ≥ 6g |

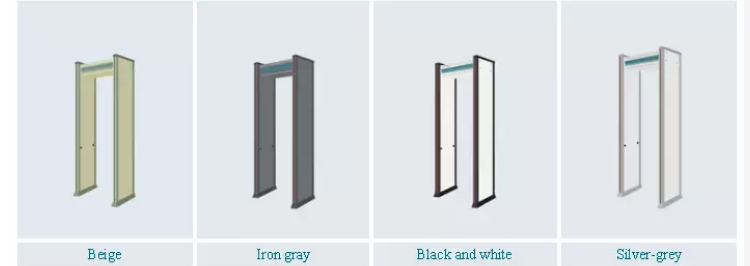

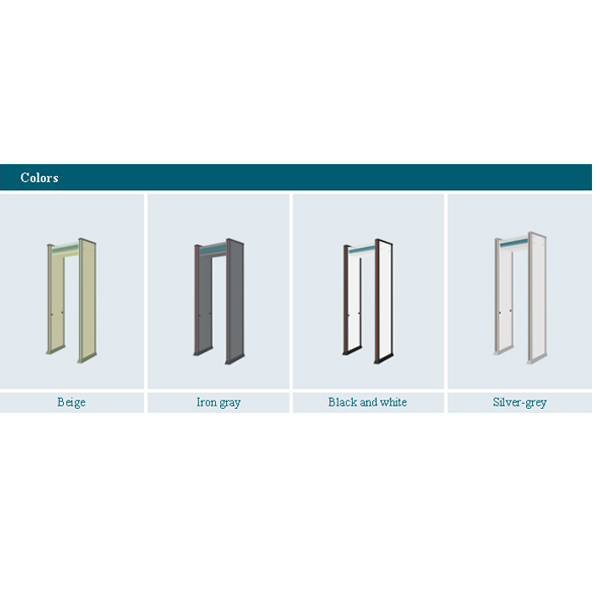

Following are all colors of walk through metal detector can be choosed.
