XR-8065 X-Ray Security Screening System

Introduce:
Airport Drug Detection Machine, Explosive Inspection Equipment in Security, X-Ray Detector for Baggage, Bag Screening Machinery

Online Message

Product Introduction

1. Multiple color display: orange for organics, blue for inorganics, green for mixture
2. High/low energy switch: high energy means metal, low energy means nonmetal
3. The security inspection equipment is designed to detect dangerous items like drug and explosives.

4. When something abnormal is found, it will alarm automatically.

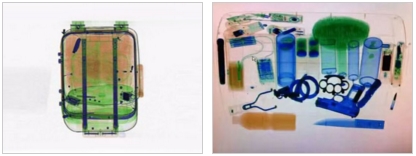

Security Screening System Screening Images

baggage inspection system screening images

Security Checking Machine Videos



Specification

Specification
Passageway size 800mm (width) ×650mm (height)
Conveyor speed 0.22 m/s
Rated conveyor load 200 kg
X-ray volume for single inspection < 1.5µGNy
Resolution 0.1mm-diameter metal wires
X-ray penetration 43mm-thick steel plates
Effect on film safe for ISO1600 film
X-ray volume ≤1.0μGy/h
Leakage volume < 0.05µGy/h
Working Environment
Temperature/humidity 0℃~45℃/20%~95% (non-condensable gas)
Storage temperature/humidity -20℃~60℃/20%~95% (non-condensable gas)
Voltage 220VAC (±10%) 50±3Hz
Power loss 1.0KW (max)
Noise < 55dB
Operator station 3-strand cable between operator station and host

Application

Juzheng offers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.

These events include but are not limited to:Dongguan Railway Station, Municipal Court, Provincial Museum, Provincial Gymnasium, the 2017 Ninth China International Fair and the Africa World Cup etc.

Juzheng has shown the world China’s high-tech security products, while thousands sets of x-ray security screening Systemequipment and services are being delivered to venues, media centers and logistic warehouses.

baggage inspection system screening images

Main Components

Manufacturing

Our Customers

Certifications
