  • XR-5030C X Ray Baggager Scanner X-Ray Security Screening System

    • XR-5030C X Ray Baggager Scanner X-Ray Security Screening System X-Ray Security Screening System

    Introduce：
    Schools, bank, court Security Machine System, Conveyor Baggage Security Scanner, X Ray Scanner For Small Size of Parcels Or Package

    Online Message

    Product Introduction

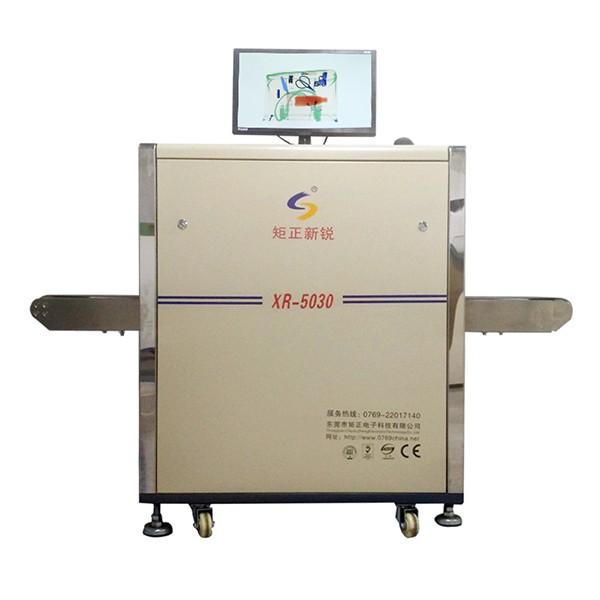

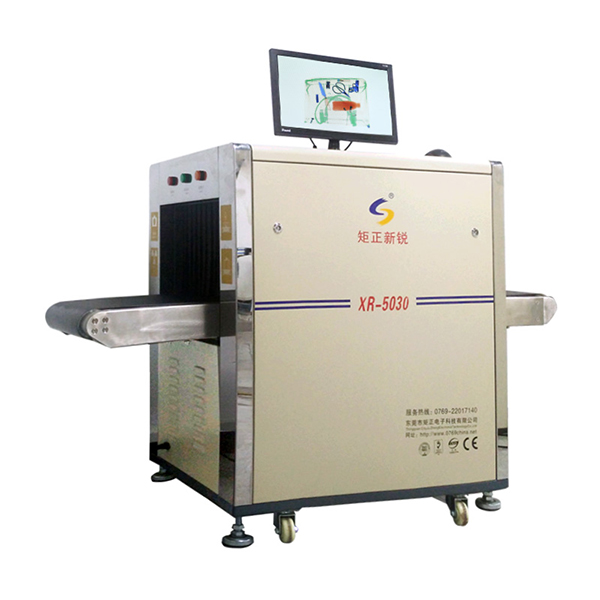

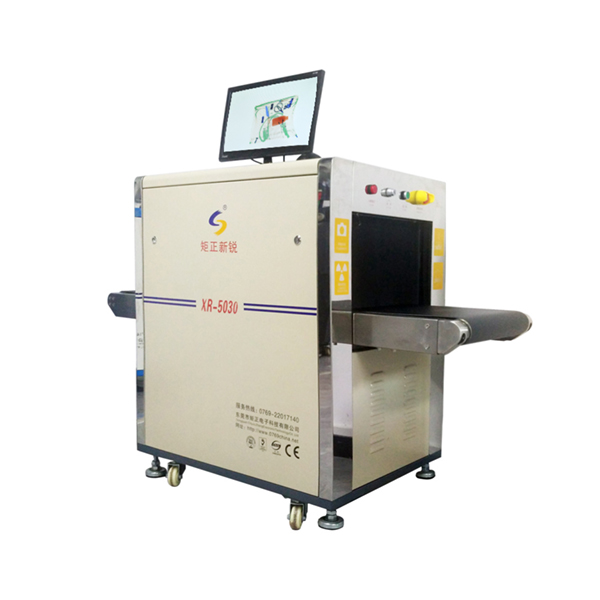

    With the design of small and ergonomic dimensions of the Juzheng XR-5030 C x-ray device, hand luggage, Small luggage such as laptop bag, bond bag and small size boxes are easily controlled.XR-5030 C uses a high resolution x-ray detector array that improves detection sensitivity and image resolution, optimizing image presentation.With its ergonomic dimensions, it is a very suitable model for narrow spaces such as business centers and hotel lobbies.In addition, all private and commercial businesses are a particularly preferred model.It is the perfect system for schools, hotels, bank, court, shopping malls, convention centers and event-based security requirements.


    Security Checking Machine Screening Images

    x-ray baggage scanner machine screening images

    XR-5030 security screening system

    Security Checking Machine Videos

    Specification

    Specification
    Passageway size 500mm (width) ×300mm (height)
    Conveyor speed 0.22 m/s
    Rated conveyor load 150 kg
    X-ray volume < 1.5µGNy
    Resolution 0.0787mm-diameter metal wires
    X-ray penetration 38mm-thick steel plates
    Effect on film safe for ISO1600 film
    X-ray volume for single inspection ≤1.0μGy/h
    Leakage volume < 0.05µGy/h
    X-ray direction from the top
    Tube current 0.4~0.5mA (adjustable)
    Tube voltage 100~160 kV (adjustable)
    Beam divergence angle 60°
    Cooling /operation cycle sealed oil cooling /100%
    Working Environment
    Temperature/humidity 0 ℃~45 ℃ /20%~95% (non-condensable gas)
    Storage temperature/humidity -20 ℃~60 ℃ /20%~95% (non-condensable gas)
    Voltage 220VAC (±10%) 50±3Hz
    Power loss 1.0KW (max)
    Noise < 55dB
    Operator station 3-strand cable between operator station and host

    Application

    Our security checking machines mainly were used in Airport, Hotel, Police, Army, Metro, Station etc.

    security checking machine application

    Main Components

    Manufacturing

    Our Customers

    Certifications
