Product Introduction
Instrument Features:
1: No darkroom, real-time imaging, display synchronization display, can be connected to the computer storage printing;
2: High gain, high sensitivity, high spatial resolution, short response time;
3: Simple design, small size, light weight, can be used by hand;
4: Low radiation dose, safe and reliable, easy to operate.
Product Applications:
- It is used for factory connecting wires, USB wires, earphones, die-casting parts, aluminum castings, plastic castings, die-casting parts and other electronic components. Whether the internal structure is offset or deformed; whether it is desoldered or not.
- Adaptation to hospital surgery, especially the necessary tools for orthopedic surgeons, door, emergency, visit, ward round and surgical site X-ray fluoroscopy, closed reduction of limb fractures, fixation, needle insertion, foreign body, especially X-ray fluoroscopy and gynecological birth control ring for newborn babies and young children with the best use of slinged intramedullary nails or external fixation brackets.
1: No darkroom, real-time imaging, display synchronization display, can be connected to the computer storage printing;
2: High gain, high sensitivity, high spatial resolution, short response time;
3: Simple design, small size, light weight, can be used by hand;
4: Low radiation dose, safe and reliable, easy to operate.
Product Applications:
- It is used for factory connecting wires, USB wires, earphones, die-casting parts, aluminum castings, plastic castings, die-casting parts and other electronic components. Whether the internal structure is offset or deformed; whether it is desoldered or not.
- Adaptation to hospital surgery, especially the necessary tools for orthopedic surgeons, door, emergency, visit, ward round and surgical site X-ray fluoroscopy, closed reduction of limb fractures, fixation, needle insertion, foreign body, especially X-ray fluoroscopy and gynecological birth control ring for newborn babies and young children with the best use of slinged intramedullary nails or external fixation brackets.
Specification

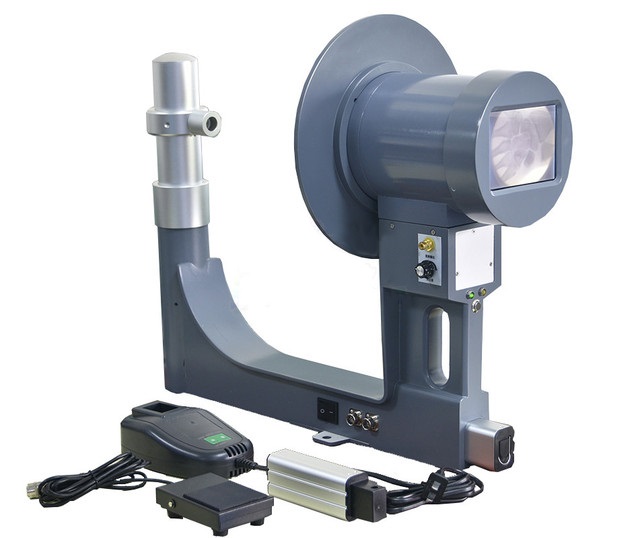

| Product Name | Portable X-Ray Fluoroscopy Instrument |
| Model# | XR-100C-1 |
| Product Application | The detection of Pet/Veterinary, Limbs/Orthopedic, Chip/Electronic, Pottery |
| Field of View | Φ 100mm |
| Resolution | 46 lp/cm |
| Maximum Detection spacing | ≤ 280mm |
| X-ray Output | 80 Kv/0.5 mA |
| X-ray leakage | ≤1.0mGy/h (the air kerma in the area of any-100 cm2 from the focus point 0.5m) |
| Contrast | 4% |
| Grayscale | Level 7 |
| Input Power | 60-90 VA |
| Output Brightness | > 6cd/cm2 |
| Power Consumption | 80W |
| Power Supply | 220V/50HZ |
| Rechargeable Battery | Optional |
| Product Packaging | Copper Alloy Suitcase |
| Product Net Weight/Gross Weight | 8 kg / 17kg |
| Warranty Period | 12 Months |
