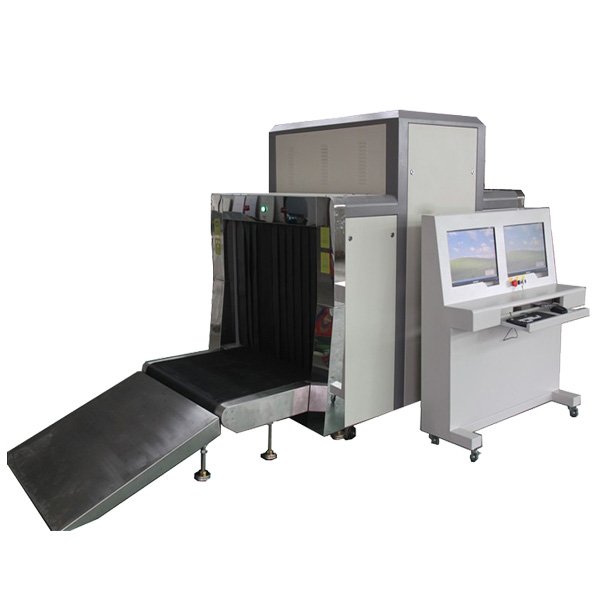

XR-10080 X-Ray Security Screening System

Introduce:
X-Ray Equipment for Airport Security, Luggage Inspection Machine for Airport, Image Scanner, Weapon Detector, Security Machinery Company

Online Message

Product Introduction

1. XR-10080 security inspection system is widely used in airport, checkpoints, subway station, and train station to detect drug, explosives, among other dangerous items
2. Multiple color display: orange for organics, blue for inorganics, green for mixture
3. High/low energy switch: high energy means metal, low energy means nonmetal

4. The equipment will alarm automatically once something abnormal is found

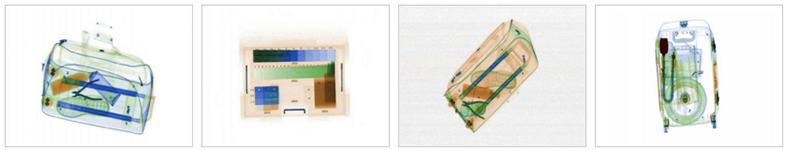

security inspection equipment screening images

Security Checking Machine Videos



Specification

Specification
Passageway size 1000mm (width) × 800mm (height)
Conveyor speed 0.22 m/s
Rated conveyor load 200 kg
X-ray volume for single inspection < 1.5μGNy
Resolution 0.0787mm-diameter metal wire
X-ray penetration 43mm-thick steel plates
Effect on film safe for ISO1600 film
X-ray volume ≤1.0μGy/h
Leakage volume < 0.05μGy/h
X Ray Generator
X-ray direction from the top
Tube current 0.4~1.25mA (adjustable)
Tube voltage 100~160 kV (adjustable)
Beam divergence angle 90°
Cooling/operation cycle sealed oil cooling/100%
Working Environment
Temperature/humidity 0℃~45℃/20%~95% (non-condensable gas)
Storage temperature/humidity -20℃~60℃/20%~95% (non-condensable gas)
Voltage 220VAC(±10%) 50±3Hz
Power loss 1.0KW (max)
Noise < 55dB
Operator station 3-strand cable between operator station and host

Application

security inspection equipment application

Main Components

Manufacturing

Our Customers

Certifications
