Product Introduction

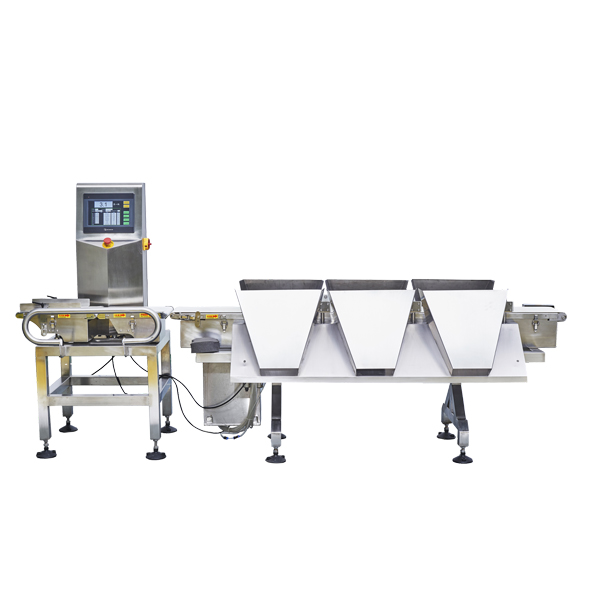

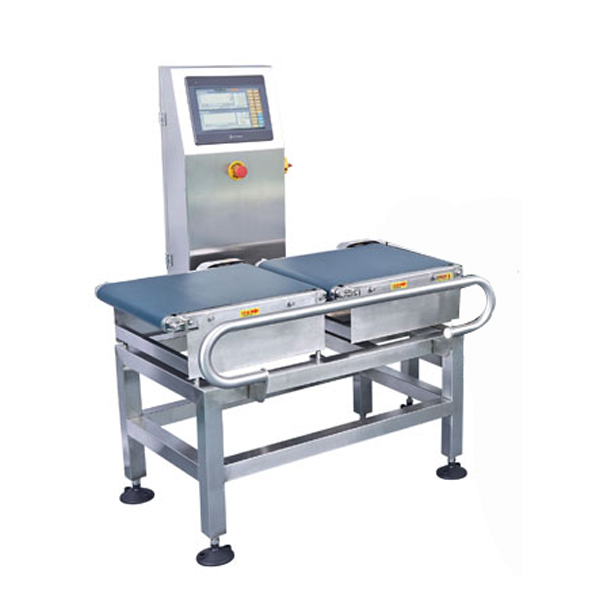

The Juzheng XR-500G checkweigher designed to operate in high speed lines where excellent performances are required. Configurated to operate with light products where great ability of weight reading is required. The use of high level components guarantees a linear, constant and repetitive acquisition. Self-calibration, data collection software: The checkweigher is composed of accessories that makes it usable, effective and durable.
Specification
Weighing range: 8g-500g
Weighing zone: Length: 450mm; width: 300mm (customizable）
Weighing precision: ±0.5g
Display resolution: 0.1g
Sorting speed: 160 pieces/ min
Height of conveyor belt to the ground: 700mm±50mm（Adjustable）
Display: 10-inch large touch screen
Control power supply: AC 220 V (fluctuation+10% 、-15%,50/60Htz)
Working temperature: 0°C - 40°C
Humidity: 90% relative humidity（no condensed water）
Material, surface treatment: Stainless steel 304, polished surface
Devices used: Printer, ink-jet printer, labelling machine, metal detector etc
Weighing sensor: Germany HBM sensor
Engine: Germany JSCC engine
Optional conveyor belt: Food-grade belt, PU belt, PVC belt
Other standard equipment: Windshield（Colorless and transparent）, calibration weights
More Automatic Checkweighers
Application
This model checkweigher was special designed to check the single bag weight is conformed to the preset target weight or not. If over or less weight will be rejected out by the rejection device, qualified bags will be passed to next equipment.
