    • XR-8065G X Ray Scanner Detector Device Systems With Quality Assurance Certificate X-Ray Security Screening System

    Introduce：
    X-ray handbag and luggage scanner for hotels, Hot selling parcel x-ray scanner, Bus Station X Ray Scanner Supplier, Security Checking X Ray Luggage Scanner, Scanner of luggage with X-ray

    Online Message

    Product Introduction

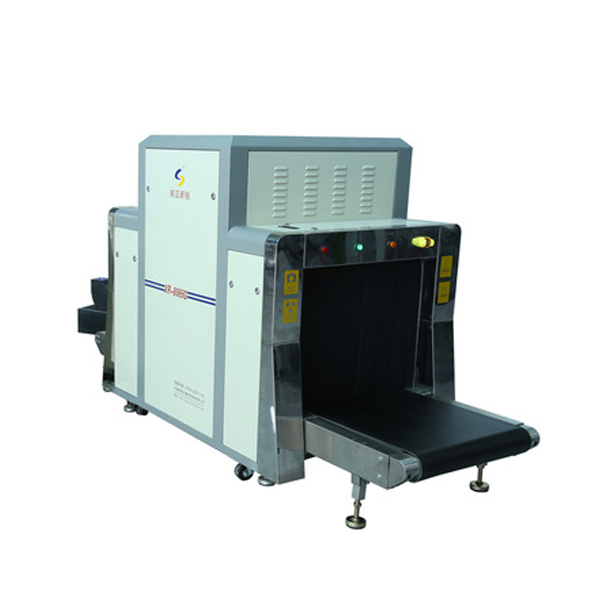

    Juzheng XR-8065G X Ray Baggage Scanner is used in Commercial buildings, factories, courthouses, embassies, government buildings, military installations, all public institutions like prisons, mail rooms, hotels, schools, convention centers and all security checkpoints.

    It has an Excellent system for airport, train station, bus station as well as security-sensitive corporate environments

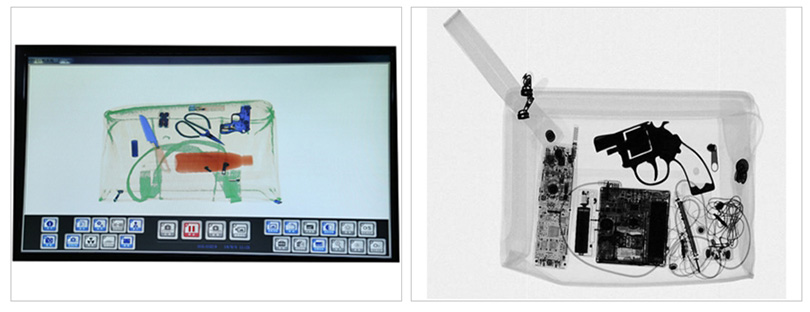

    x-ray security machine screening images

    Specification

    Passageway size 800(W)*650(H)mm
    Conveyor speed 0.22m/s
    Rated load of conveyor 200kg
    X-ray volume for single inspection < 1.7μGy/h
    Resolution < 0.0787mm cooper wire
    Spatial resolution Horizontal: 1.0mm, vertical: 1.0mm
    Penetration resolution 0.254mm
    X-ray penetration ≥ 38-40mm steel plate
    Film safety Guarantee ISO1600 Film
    X-ray leakage < 0.05μGy/h
    Image grey level 4096
    Max image resolution 1024 * 1280 pixel
    Image processing 24bit real time-processing
    Storage temperature/humidity -20°C-60°C/20%-95%(condensable)
    Operation power 220VAC(±10%)50±3Hz
    Power consumption 1.0 KW (max), 1.0KW ，noise: < 55db
    Warranty 24 months
    Certification CE/ROHS/ISO9001
    Color Grey
    Supply capacity 35 Sets/week
    Package Strong wooden box


    Security Checking Machine Videos


    Application

    Juzheng offers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.

    These events include but are not limited to: Dongguan Railway Station, Municipal Court, Provincial Museum, Provincial Gymnasium, the 2017 Ninth China International Fair and the Africa World Cup etc.

    Juzheng has shown the world China’s high-tech security products, while thousands sets of x-ray security screening System equipment and services are being delivered to venues, media centers and logistic warehouses.

    x-ray security machine application

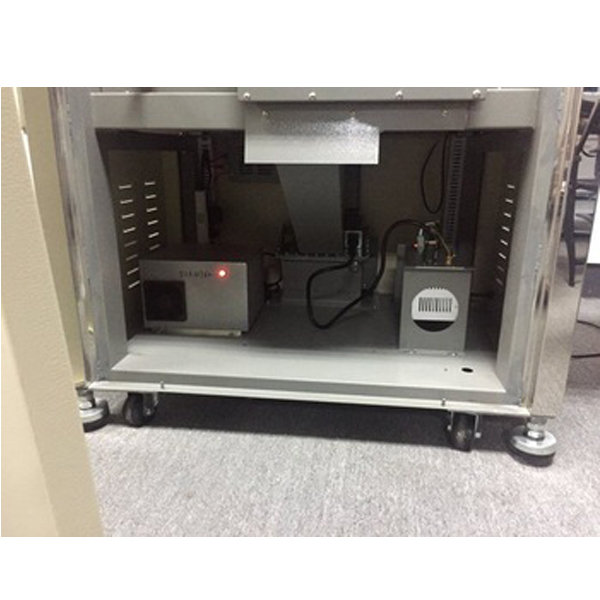

    Main Components

    Manufacturing

    Our Customers

    Certifications
