Product Introduction

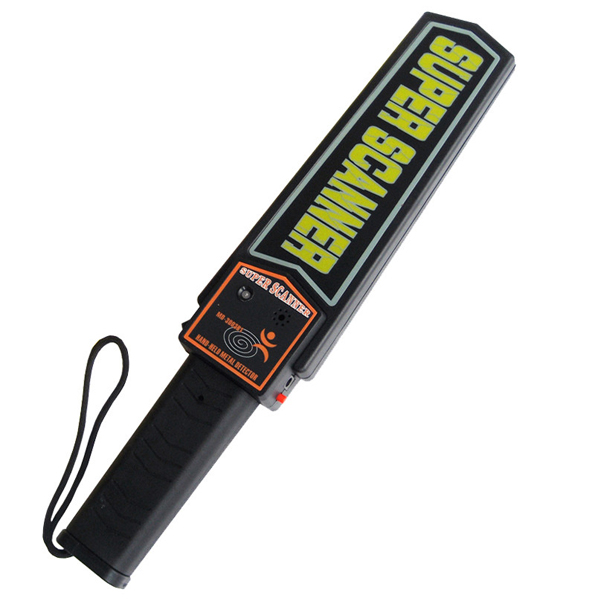

The Juzheng GC-3003 hand held metal detectors are used to inspect persons, bags, luggage, letter and parcels to find makeshift explosive devices (IED), weapons, weapon parts, ammunition, explosives in metallic casings, etc. The use of this device also allows the detection of these objects in masonry, wall coverings, cavities and in the ground.
Specification
| Green LED flashes | power on |
| Red LED flashes | target detected |
| Yellow LED always on | low voltage |
|
Metal indicator LED |
the indicator gets red from green as the objects detected get bigger |
| Audio mode | buzzer, red LED, metal indicator LED |
| Vibration mode | vibration, red LED, metal indicator LED |
| Battery | standard 9V battery |
| Power | 270MW at most |
| Frequency | 22KHZ |
| Standby current | <5MA |
| Voltage | DC 7~12V |
| Environment temperature | -10℃~65℃ |
| Time for reset | 0.5s |
| Net weight | 170g (without battery) |
|
Dimension |
295mm*68mm*28mm |
