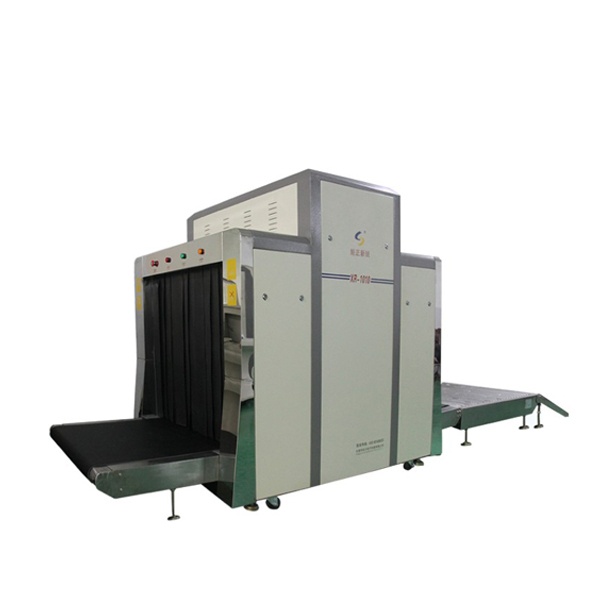

  • XR-100100 X-Ray Luggage Scanner X-Ray Security Screening System

    Introduce:
    X ray large baggage scanner System Machine, Conveyor x ray luggage scanner, Airport security equipment machine,Big tunnel size x ray inspection machine

    Online Message

    Product Introduction

    The Juzheng XR-100100 equipped with a 160 kV generator typically and with 38mm steel plate penetration, which designed for screening oversize objects.



    -Tunnel Size: 1000(Width) *1000(Height)mm-Dimensions: 3500(Length) *1250(Width)* 2100mm(Height) mm- Approximate Gross weight: 980kgs

    -Conveyor Speed: 0.22 m/s forward or backward

    -Conveyor capacity: 200 kg




    x-ray baggage scanners screening images


    Security Checking Machine Videos

    Specification

    Specification

    Passageway size 1000mm (width) × 1000mm (height)
    Conveyor speed 0.22 m/s
    Rated conveyor load 200 kg
    X-ray volume for single inspection < 1.5µGNy
    Resolution 0.0787mm-diameter metal wire
    X-ray penetration 43mm-thick steel plates
    Effect on film safe for ISO1600 film
    X-ray volume ≤1.0μGy/h
    Leakage volume < 0.05µGy/h
    X Ray Generator
    X-ray direction from the top
    Tube current 0.4~1.25mA (adjustable)
    Tube voltage 100~160 kV (adjustable)
    Beam divergence angle 90°
    Cooling/operation cycle sealed oil cooling/100 %
    Working Environment
    Temperature/humidity 0℃~45℃/20%~95% (non-condensable gas)
    Storage temperature/humidity -20℃~60℃/20%~95% (non-condensable gas)
    Voltage 220VAC(±10%) 50±3Hz
    Power loss 1.0KW (max)
    Noise < 55dB
    Operator station 3-strand cable between operator station and host

    Application

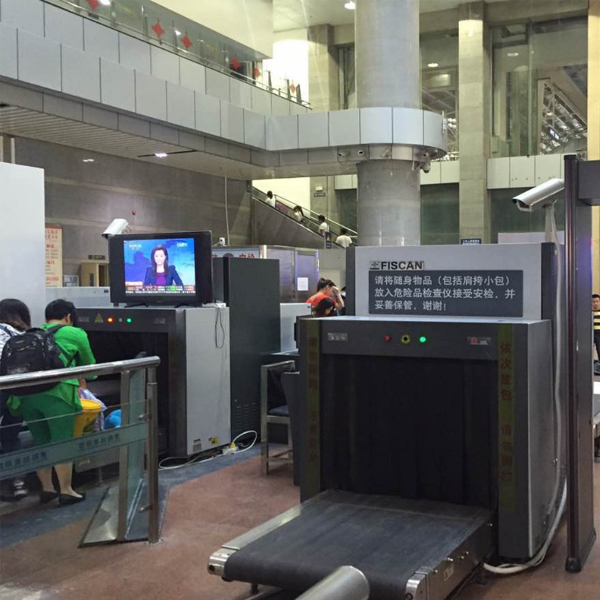

    X-Ray Security Screening System application
