Product Introduction
1. XR-800 baggage inspection system runs at a standard speed of 12m/min (600 bag/min); with the speed adjustable
2. X-ray tube made in the US with the voltage and current adjustable
3. Sensor: multi-mode 0.4×2.0(mm) CMOS sensor from Japan
4. High-speed fully-embedded DSP system
5. The baggage screening system employs X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display and user-friendly HMI for high inspection accuracy
2. X-ray tube made in the US with the voltage and current adjustable
3. Sensor: multi-mode 0.4×2.0(mm) CMOS sensor from Japan
4. High-speed fully-embedded DSP system
5. The baggage screening system employs X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display and user-friendly HMI for high inspection accuracy
6. Testing accuracy: the smallest debris, foreign bodies, and even 0.8mm-diameter metal wires are clearly displayed
Specification
| Passageway size | 505mm (width) ×305mm (height) |
| Machine dimension | 1650*780*1200mm |
| Conveyor height | 700-800mm |
| Conveyor speed | 0.22 m/s |
| Rated conveyor load | 110 kg |
| X-ray volume for single inspection | < 1.5μGNy |
| X-ray penetration | 43mm-thick steel plates |
| X-ray leakage | 0.752μGy/h; in line with national health and safety requirements on radiation devices |
| Voltage | AC220V, 50±3Hz |
| X-ray tube voltage | 100~160 kV (adjustable) |
| Power | 0.3KW/h |
| Working environment | temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas) |
| Noise | ≤57dB |

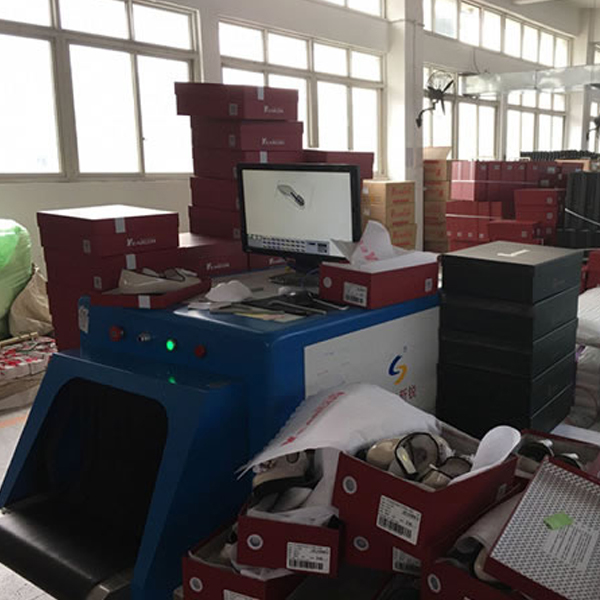

Application
