Product Introduction
t can detect the mobile phone and sound and light alarm; Excluding keys, belt buckles, glasses, jewelry, all kinds of stationery and other daily metal articles are not false alarms; suitable for the scene of the examination room efficient security quickly pass needs, can also be applied to bid evaluation room, enterprises, public security...
Display screen | Full touchable 10 inches |
Weight | 100KG |
Power consumption | <30W |
Working temperature | -20℃─60℃ |
Operating humidity | (60±2)℃、RH(93+2 -3)%、48h |
Voltage | 110V-242V ,50/60Hz |
Dimension | 2200*950*650mm |
Channel size | 2000*720*650mm |
Package size | Main board:175*700*2280mm Controller box:265*525*760mm |
Detection zones | 8 partition zones and display the mobile phone location |
Parallel mode | Three units can be placed in parallel with a distance of 50cm |
Alarm mode | Sound and light alarm |
Password | Can set the password to prevent non-operators from misoperation |
Passing speed | ≥30 people/min, detection response time < 0.5 seconds |
Internet | Reserved communication interface, can share data with computer etc. |

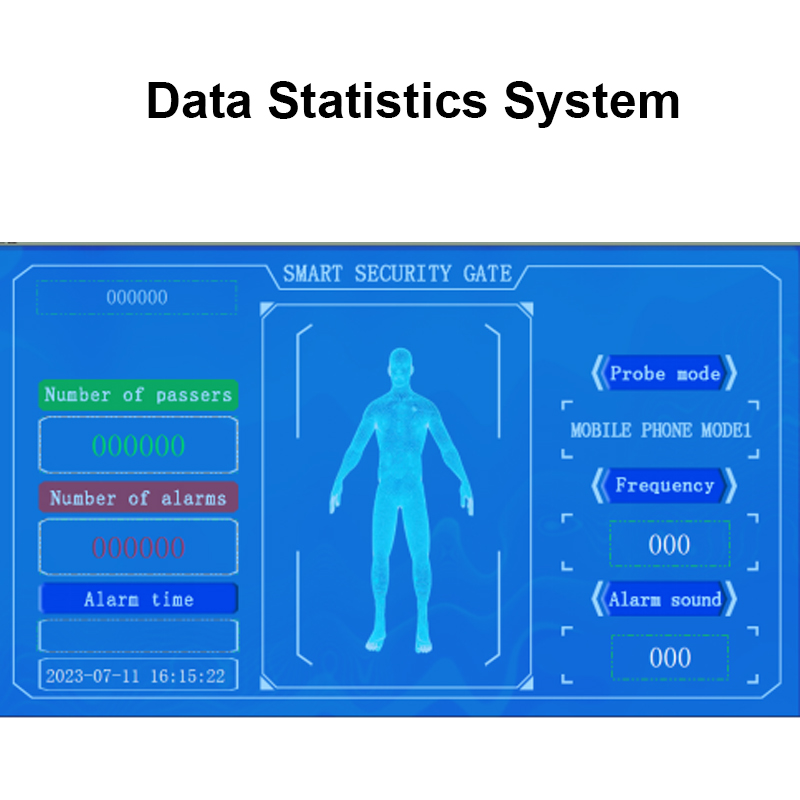

Signal display | Detection signal image waveform display |
Linkage function | The interface can be reserved for connecting the access control, turnstile,alarm lights and other devices |
Modular design | Convenient transportation, maintenance and installation |
Sensitivity | 255 levels adjustable |
Commodity exclusion |
Excluding belt buckles, glasses, pens, stationery bags, mechanical watches, umbrellas and other daily items for mobile phone detection. |
Specification
Application

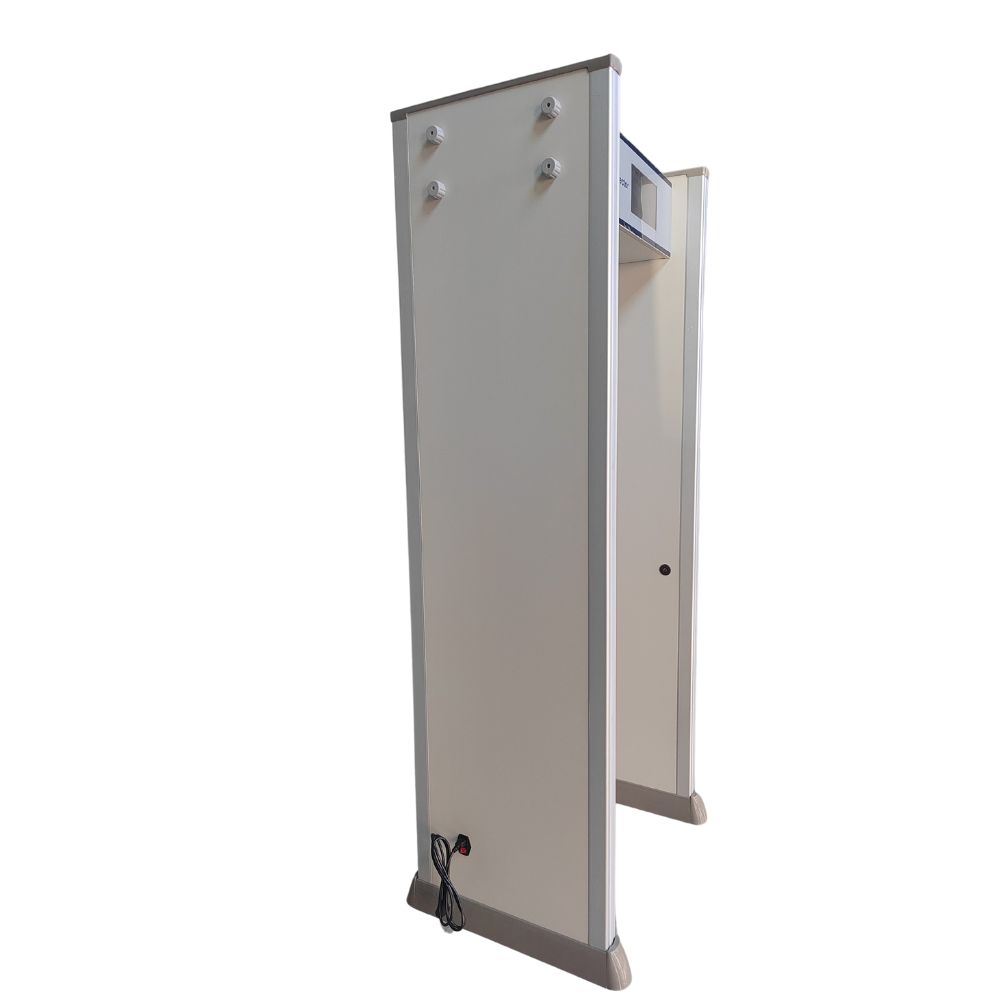

JZXR XR-I series mobile phone security gate is a product independently developed by Dongguan Juzheng Electronic Technology Co., Ltd. The product uses a new electromagnetic induction signal algorithm to capture the shape, weight and density of the passed items. Then the background program of the Android system performs DSP processing technology. Through data collection and analysis and program comparison and identification, daily necessities are separated from contraband such as mobile phones, so as to realize the role of accurate detection of mobile phones.
