Product Introduction

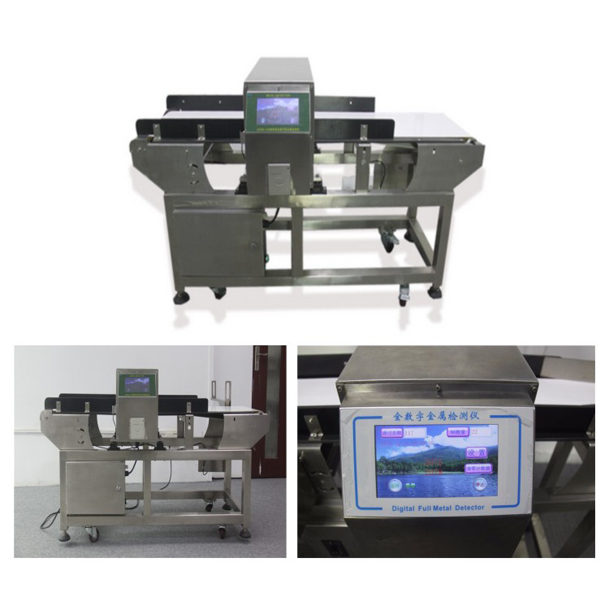

The Juzheng XR-508K Food Quality Inspection Machin is mainly used to detect whether there is metal in the food and whether there is Broken Needle in the cloth if so this metal detector is really a good tool to help find out the potential danger. And apart from the above usages this detector device can also be used in high detection sensitivity industries, the detection of inclusions or lost in the raw materials or products of, wire, stainless steel, other metals and so on.
Specification
| Model | XR-508K | ||||||||
| Machine type | Standard | Nonstandard (special specification) | |||||||
| Tunnel width (mm) | 400 | 400- (customized) | |||||||
| Tunnel height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Standard detection sensitivity | diameter of iron ball (Φ mm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| diameter of balls made of non-ferrous metal like copper and aluminum (Φ mm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| 304 stainless steel ball (Φ mm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.0 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| Alerting manner | stop automatically once a metal foreign body is detected; the buzzer alarm | ||||||||
| Machine material | machine frame is made from 304 stainless steel | ||||||||
| Machine dimension (mm) | 1330mm ×700mm ×1000mm (L×W×H); other dimensions are customizable upon request | ||||||||
| Machine weight | about 250KG | ||||||||
| Power | 220V 50Hz 90W | ||||||||
| Remarks: parameters listed are values tested in standard conditions; the actual performance may vary as the environment and the products tested change; standard machines are in stock supply | |||||||||
