Food safety:

It is suitable for all kinds of meat, nuts, fruits, vegetables, chocolate and other internal foreign body detection. Impurities include: metal, glass, ceramic, stone, bone and hard plastic.

NDT inspection:

It is suitable for bags, hangbags, toys, footwear, garments, metal parts, electronic componets and other foreign bodies detection.

Fully automatic calibration hardware:

From initialization, detections and exit shutdown all process, X-ray and hardware imaging components will automatically run the best.

High resolution imaging module:

Using high definition X-ray sensor

Contrast sliding bar:

In view of the different density products detection, the best perspective can be achieved by the contrast sliding bar.

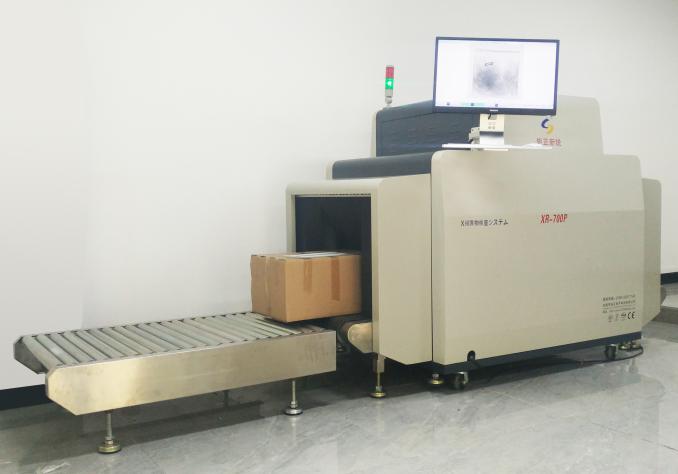

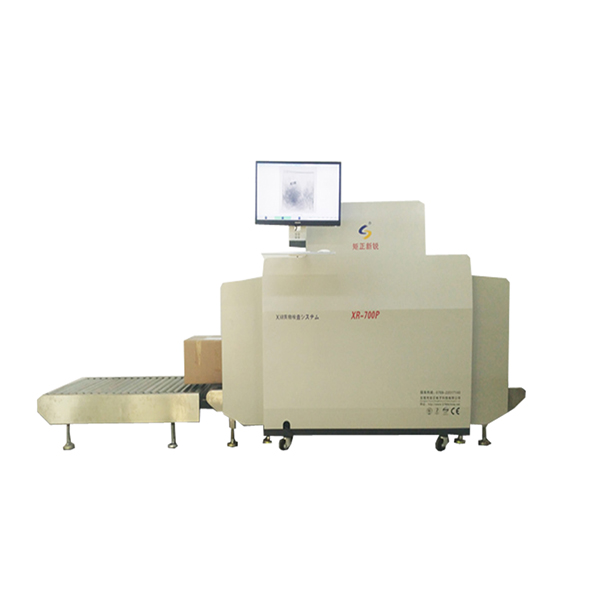

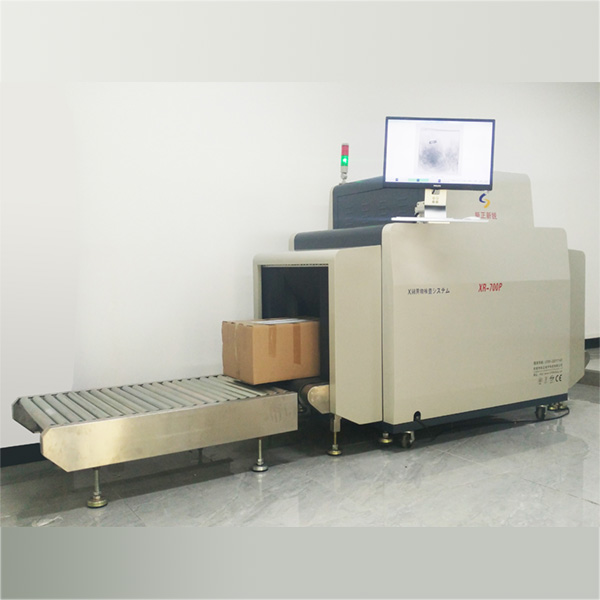

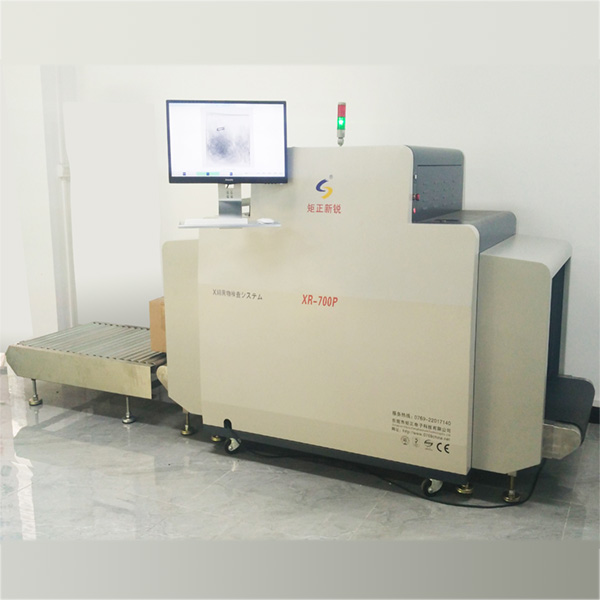

Model#:

XR-700P

Brand:

JZXR

Tunnel Size:

800mm(W)×600mm(H)

Through Max Size:

700mm(W)x480mm(H)

Conveyor Speed:

0.4 m/s

Pixel size:

1.6mm

 Detection Accuracy:

metal wires and broken needle: ф3.0mm

X-ray Direction:

From the top

X-ray Tube:

Tube current: 0.3~1.25m（adjustable）   Tube voltage: 140 kV（adjustable）

Cooling /Operation Cycle:

Sealed oil cooling／100％

X-ray Direction:

From the top

X-ray Tube:

Tube current: 0.3~1.25m（adjustable）  Tube voltage: 140 kV（adjustable）

Cooling /Operation Cycle:

Sealed oil cooling／100％

 Images Storage:

JPEG, BMP and BITMAP format, Free setting of storage path,  500G hard drive to store more than 100K images 100000 pictures storage

Ultra-thin object:

Imaging of thin objects

Multi-level user Management:

Administrators, operators, and maintenance personnel hierarchical authority settings to ensure data security

Software:

Windows 7

Dimensions:

2300*1150*1500mm (L*W*H)

Package dimensions:

2450*1300*1700mm (L*W*H)

Operating Voltage:

220VAC(±10%)   50±3Hz

Power:

1.0KW（Max）

Noise:

<55dB

Working Environment  temperature / humidity:

-20℃～60℃／20%～95% (no condensation)
