Product Introduction

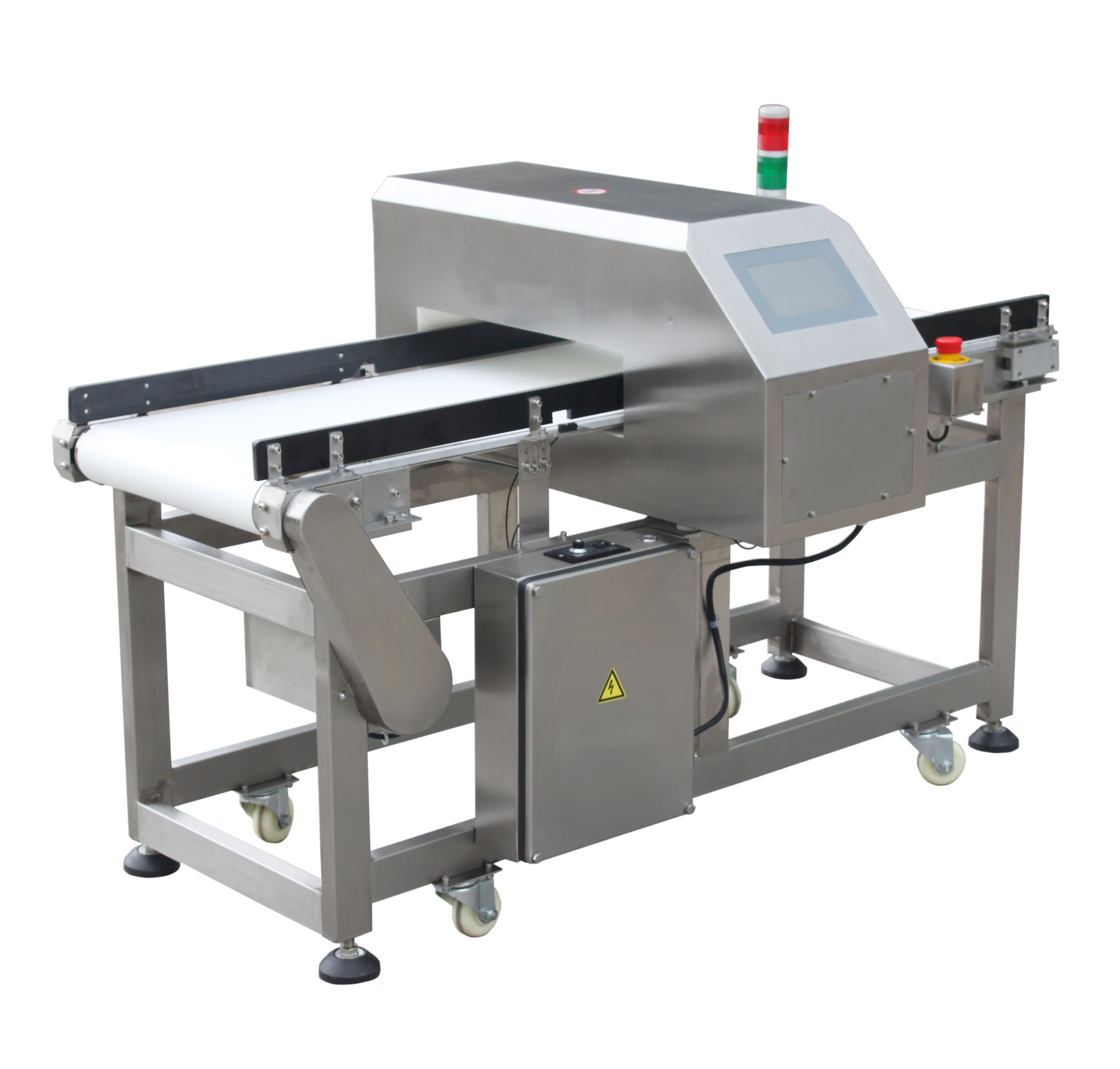

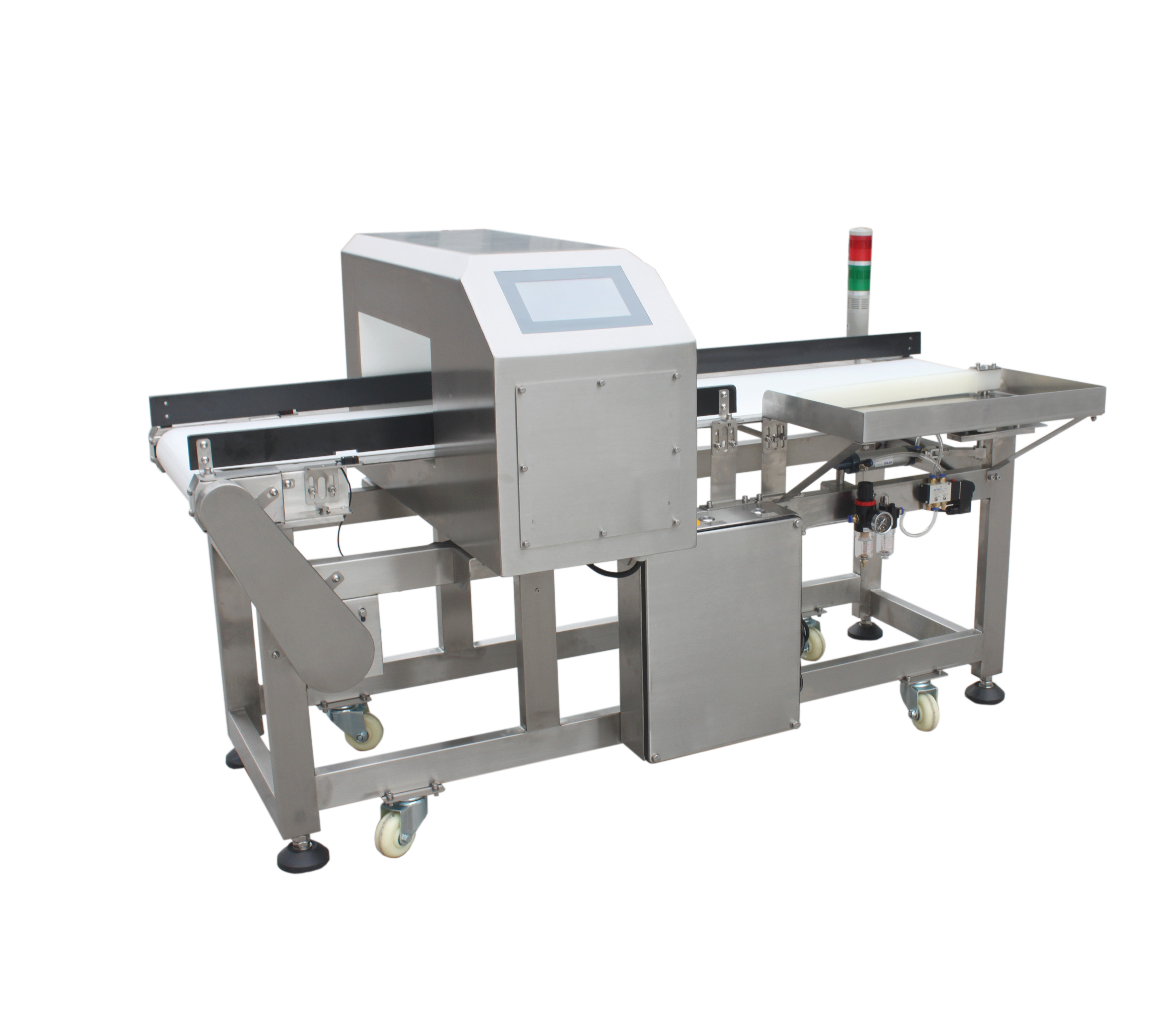

The product you are viewing is the Auto Conveyor Type Food Metal Detector, which is really an advanced machine that is widely used in the detection of meat, mushrooms, candy, drinks, food, fruits and vegetables, dairy products and other food-ferrous metals and non-ferrous metal impurities.
Specification
Model | XR-506 | ||||||||
Machine type | Standard | Nonstandard (special specification) | |||||||
Tunnel width (mm) | 400 | 500- (customized) | |||||||
Tunnel height (mm) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
Standard detection sensitivity | diameter of iron ball (Φ mm) | ≥0.6 | ≥ 0.8 | ≥ 1.0 | ≥ 1.2 | ≥ 1.5 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 |
diameter of balls made of non-ferrous metal like copper and aluminum (Φ mm) | ≥1.2 | ≥ 1.2 | ≥ 1.5 | ≥ 1.5 | ≥ 2.5 | ≥ 3.0 | ≥ 4.0 | ≥ 4.5 | |
304 stainless steel ball (Φ mm) | ≥1.2 | ≥ 1.5 | ≥ 2.0 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 | ≥ 4.0 | ≥ 4.5 | |
Alerting manner | stop automatically once a metal foreign body is detected; the buzzer alerts or picks the metal objects out | ||||||||
Machine material | machine frame is made from 304 stainless steel; in line with HACCP, GMP, FDA, and CAS standards | ||||||||
Machine dimension (mm) | 1330 ×750 ×1100 (L×W×H) | ||||||||
Machine weight | about 180KG | ||||||||
Remarks: the parameters listed above are tested without taking into account the environmental interference. The actual performance may be subject to working environment and components of the products to be tested |
Application
JUZHENG has metal detection solutions for a variety of industries, including food (bread, steamed bread, dumplings, biscuits, and bun), medicine, toy, clothing, shoe, chemical, leather, and fabric, etc. Our food inspection system improves product quality and safety by picking out iron and non-ferrmagnetic metals (nonferrous metals like iron, copper, aluminum and stainless steel are included) from the raw materials.
