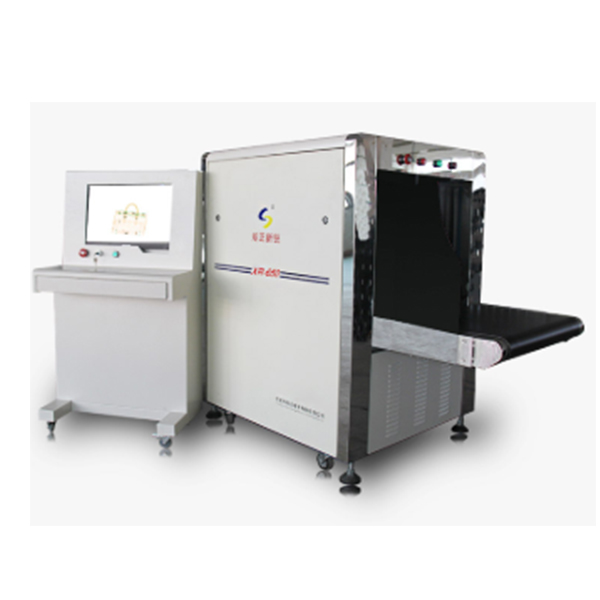

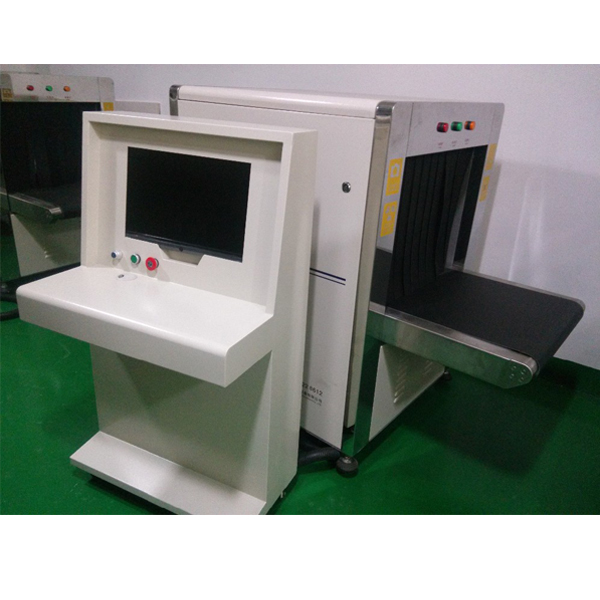

Product Introduction
1. Radiation safe
2. High resolution, high penetration and good image quality
3. Multilingual operation
4. Automatic built in test and self diagnosis
5. Threat alert and material classification
6. Energy saving design
7. One key turn off with patent
8. Drugs and explosives detection

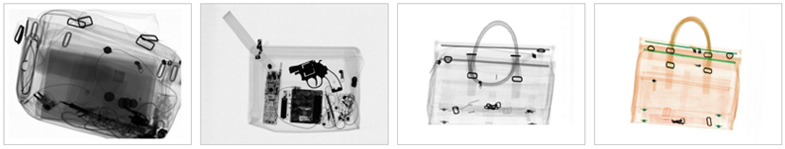

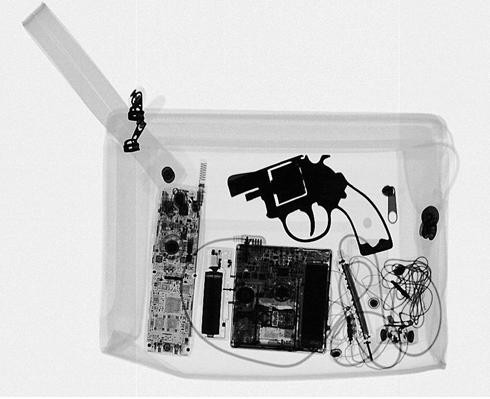

X-Ray Security Screening System Screening Images
Specification
| Passageway size | 650 mm (width) × 500mm (height) |
| Conveyor speed | 0.22 m/s |
| Rated conveyor load | 250 kg |
| X-ray volume for single inspection | < 1.5µGNy |
| Machine dimension | 2100*1080*1480 |
| Conveyor height | 620mm |
| Resolution | 0.0787 mm-diameter metal wire |
| X-ray penetration | 38mm-thick steel plate |
| Penetration resolution | 0.202mm |
| Spatial resolution |
horizontal diameter: ≤1.0mm; vertical diameter: ≤1.0mm; beam divergence angle: 80° |
| Temperature/humidity | 0℃~45℃/ 20%~95% (non-condensable gas) |
| Storage temperature/humidity | -20℃~60℃/ 20%~95% (non-condensable gas) |
| Voltage | 220VAC (±10%) 50±3Hz |
| Power loss | 1.0KW (max) |
| Noise | < 55dB |
| Operator station | 3-strand cable between operator station and host |

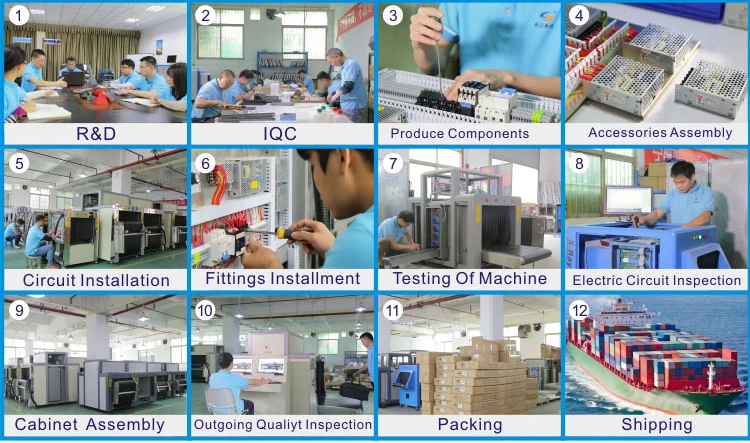

X-ray security screening system production process

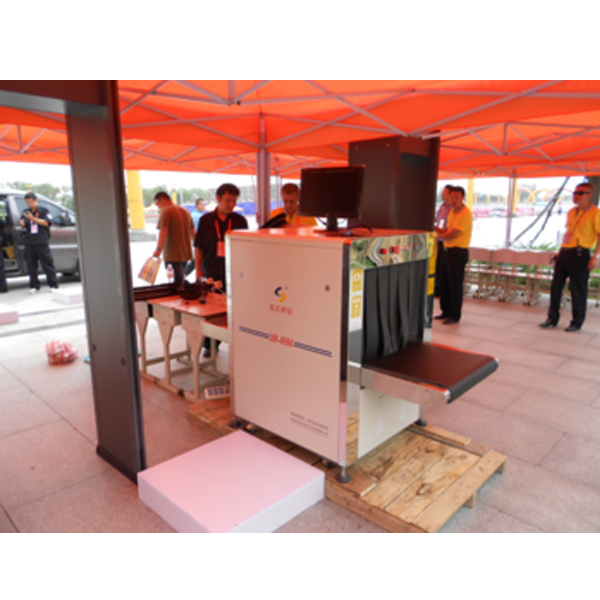

Application
Juzheng offers comprehensive security solutions and full service for
both domestic and international big events to guarantee their smooth
conducting.
These events include but are not limited
to:Dongguan Railway Station, Municipal Court, Provincial Museum,
Provincial Gymnasium, the 2017 Ninth China International Fair and the
Africa World Cup etc.
Juzheng has shown the world China’s
high-tech security products, while thousands sets of x-ray security
screening Systemequipment and services are being delivered to venues,
media centers and logistic warehouses.
Main Components
Manufacturing
Our Customers
Certifications
