Digital Body Temperature Measurement Walk Through Metal Detector

Introduction:

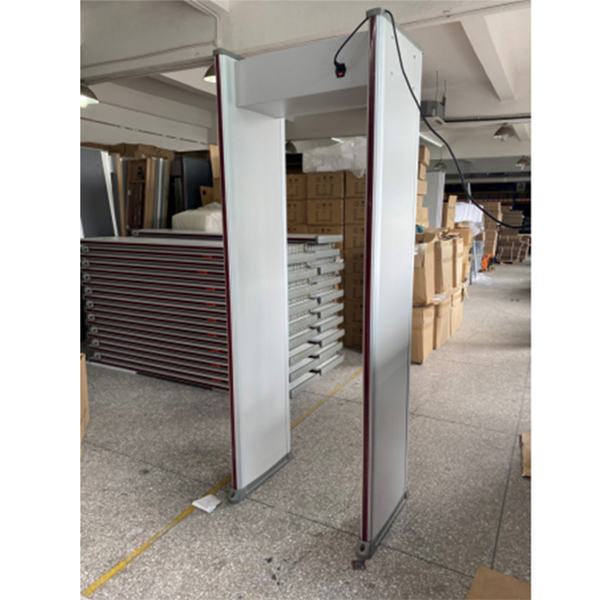

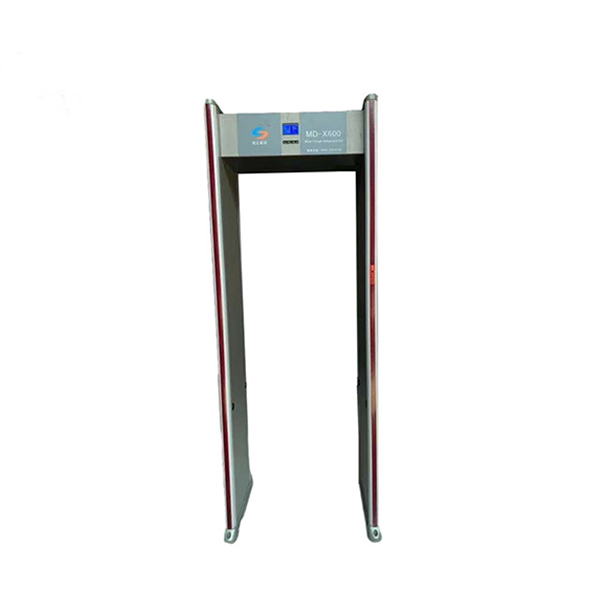

1.The security door is the integration of infrared temperature measurenent and through metal deteotion security door.Before passing through the metal security door,infrared human body temperature measurenent is carried out first,and sound alarm is given to prompt the abnormal temperature,so as to effectively prevent large-scale disease infection.
2.It adopts the world's advanced electromagnetic compatibility design and anti vibration design, with ultra-high sensitivity,strong anti-interference ability and anti-seismic ability.It is suitable for controlling the safety inspection of dangerous articles such as knives and guns,and widely used in prisons,courts,schools,
hospital,electronic enterprises,ports,passenger stations,exhibition halls,conference centers, major celebrations,concerts and other important places.

 Parameters：

Gross weight: 75kg                                  Measurement time: 1s-1.5s

Distance ratio: 1:20cm                             Accuracy: ±0.3℃

Response time: <1s                                 Power: <35W

Colors: White / Gray / Customized colors

Power supply: AC90V-250V  50HZ-60HZ

Overall dimension: 2200mm*800mm*500mm

Channel dimension: 1998mm*700mm*500mm

Infrared temperature resolution: 0.1℃/℉

Temperature range: body temperature range 32℃-42.5℃

Working temperature/humidity : 0 ℃-45 ℃  / 10-90% RH (no condensation)

Packaging dimension:

750mm*250mm*435mm (mainframe)

2250mm*600mm*160mm (door frame)
