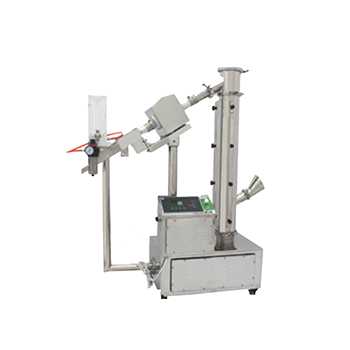

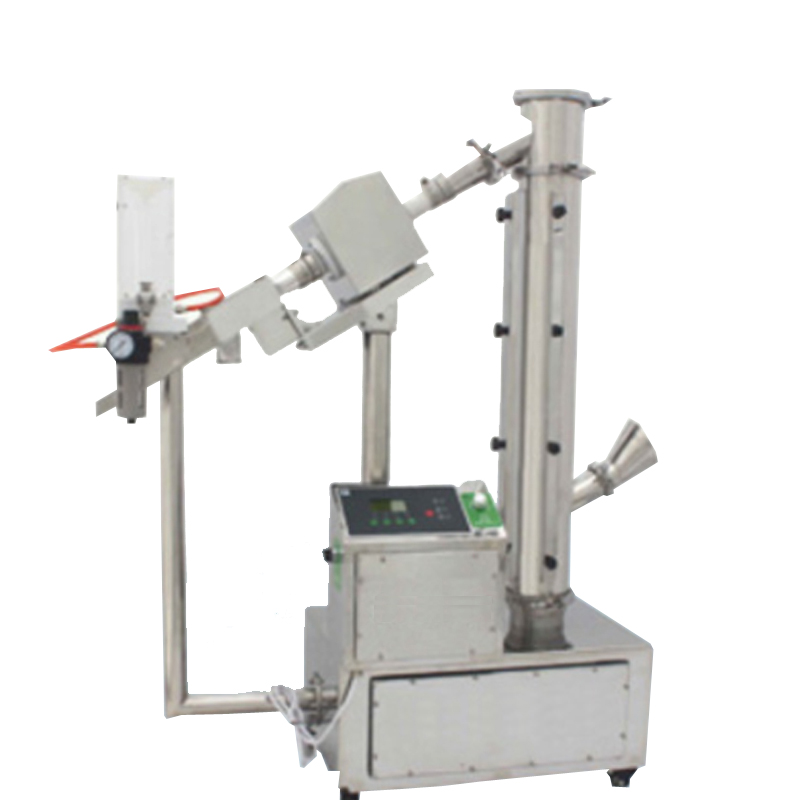

    XR-1200 Capsule Polisher Combined Metal Separator

    Introduction


    XR-1200 Capsule Polisher Combined with Mmetal Separator was designed with capsule dedusting collection, polishing, metal detection and rejection function. The machine with compact structure design and enclosed conveying tunnel.

    Product Features:

    1. Rotary nylon brush with excellent polishing performance, high production efficiency and meets GMP demands;

    2. Inlet,outlet and brushes of main axle are detachable and easy to clean, which meets the requirement of relevant laws and regulations;

    3. Metallic parts contacting with tablets are all made of stainless steel mirror 316L, which meets the demand of GMP;

    4. Install without tools and smart appearance;

    5. The rejecting device can separate capsules that are empty, broken or less quantity, which can prevent unqualified capsules enter into next process;

    6. Equip with variable frequency motor.Equip with lockable trundle for convenient movement;

    7. The height of input and output are adjustable.

    Specification

    Technical Parameters:

    Model

    Adjustable

    angle

    Input piper size

    output piper size

    Sensitivity

    (Fe/mm)

    Sensitivity

    (SUS/mm)

    Max Capacity (pc/hour)

    XR-1200

    30°- 40°

    Height: 870mm

    Dia.: Φ 190mm

    Height: 980mm

    Size: 70mm*26mm

    Φ 0.2

    Φ 0.4

    300,000
