Product Introduction
1. XR-700 security inspection equipment operates at a standard speed (adjustable) of 12m/min. The X-ray tube is made in the US, with the voltage and current adjustable
2. Sensor: multi-mode 0.4×2mm CMOS image sensor made in Japan
3. Processor: high-speed fully-embedded digital signal processing system
4. Image processing: featuring high accuracy with a combination of high-performance X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display, extended functionality, and user-friendly human-machine interface
2. Sensor: multi-mode 0.4×2mm CMOS image sensor made in Japan
3. Processor: high-speed fully-embedded digital signal processing system
4. Image processing: featuring high accuracy with a combination of high-performance X-ray image processing system, FPGA chip with high-speed algorithm, high-resolution large-screen display, extended functionality, and user-friendly human-machine interface
5. Inspection accuracy: the baggage screening machine is able to clearly display the smallest debris, foreign bodies, and even 1.2mm-diameter metal wires
Specification
| Passageway size | 505mm (W) * 305mm (H) |
| Machine dimension | 1650*780*1200mm |
| Conveyor height | 700-800mm |
| Conveyor speed | 0.22 m/s |
| Rated conveyor load | 110 kg |
| X-ray volume for single inspection | < 1.5 μ GNy |
| X-ray penetration | 43mm-thick steel plates |
| X-ray leakage | 0.752 μ Gy/h; in line with national health and safety requirements on radiation devices |
| Voltage | AC220V,50 ± 3Hz |
| X-ray tube voltage | KV 100~160 (adjustable) |
| Power | 0.3KW/h |
| Working environment | temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas) |
| Noise | ≤ 57dB |

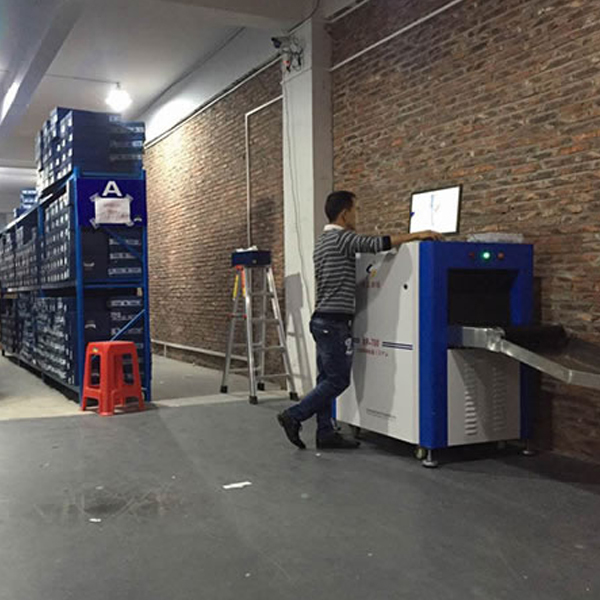

Application
