Product Introduction
1. XR-600 security check equipment employs an X-ray image processing system. The FPGA chip with high-speed algorithm, high-resolution large-screen display, extended functionality, accompanied with user-friendly human-machine interface provides a high inspection accuracy
2. Its processor with high speed adopts fully-embedded digital signal processing system
3. Multi-mode 0.4 × 2mm CMOS image sensor from Japan is adopted for the X-ray detecting equipment
4. X-ray tube made in the US is power and current adjustable
5. It is of high inspection accuracy and can clearly display the smallest debris, foreign bodies, and even 1.2mm-diameter metal wires
2. Its processor with high speed adopts fully-embedded digital signal processing system
3. Multi-mode 0.4 × 2mm CMOS image sensor from Japan is adopted for the X-ray detecting equipment
4. X-ray tube made in the US is power and current adjustable
5. It is of high inspection accuracy and can clearly display the smallest debris, foreign bodies, and even 1.2mm-diameter metal wires
6. Inspection speed is adjustable, with the standard value to be 12m/min (600 bag/h)
XR-600 X-Ray Inspection System Screening Images
X Ray Inspection System Videos
Specification
| Passageway size | 505mm (W) * 305mm (H) |
| Machine dimension | 1650*780*1200mm |
| Conveyor height | 700-800mm |
| Conveyor speed | 0.22 m/s |
| Rated conveyor load | 110 kg |
| X-ray volume for single inspection | < 1.5 μ GNy |
| X-ray penetration | 43mm-thick steel plates |
| X-ray leakage | 0.752 μ Gy/h; in line with national health and safety requirements on radiation devices |
| Voltage | AC220V, 50 ± 3Hz |
| X-ray tube voltage | KV 100~160 (adjustable) |
| Power | 0.3kw/h |
| Working environment | temperature: 0℃~60℃; humidity: 20%~90% (non-condensable gas) |
| Noise | ≤ 57dB |

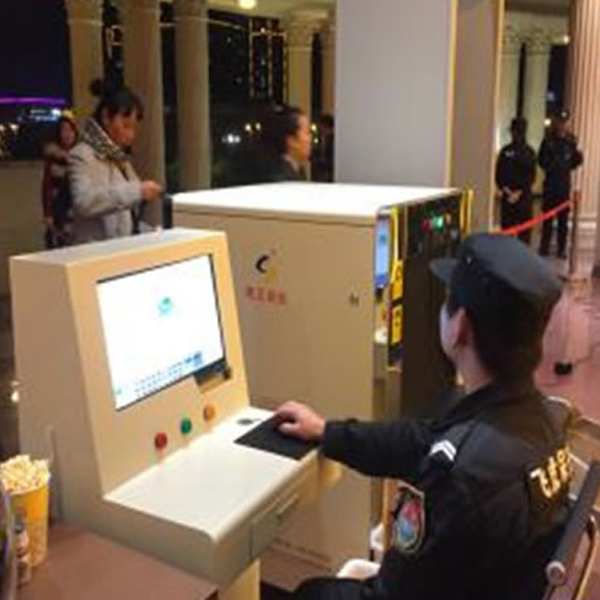

Application
Main Components
Manufacturing
Our Customers
Certifications
