Overall dimension

2140X280X820MM

Channel size

2030X720X280MM

Packing dimension

2250X630X200MM

Gross weight

92KG

Net weight

87KG

Working voltage

AV 90~240V 50~60Hz

Power dissipation

12W

Operating frequency range

1-50

Operating temperature range

-20℃~65℃

Detection sensitivity

>50g metal

1. Six Pinpoint zones to precisely identify multiple target locations from head to toe.

2. Sensitivity adjustable from Level 0 to 99 (100 levels)

(1). High: Can detect a pin
(2). Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.

3. Shock proof to avoid false alarm.

4. Sound and light alarm.

5. 2 LED light bars on both door panels: gives alarm corresponding to the height or human body.

6. Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity.

7. Remote control unit ( Optional ).

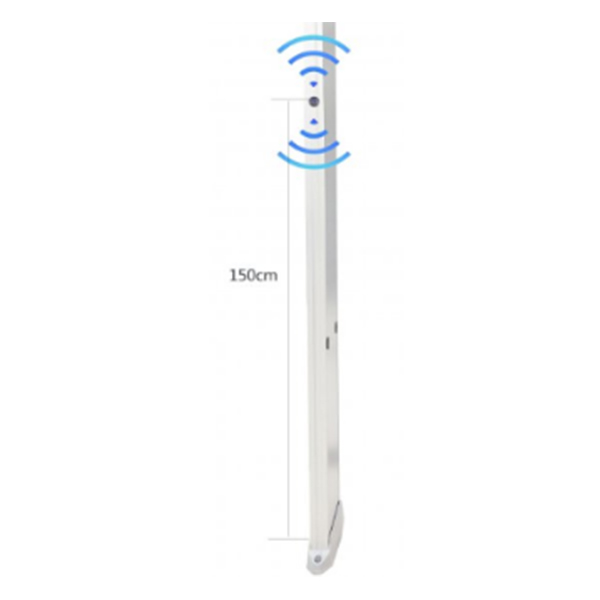

Sensorless temperature measurement

Measure the temperature of people passing through the security door.

Temperature accuracy:0~1℃;Test distance:0.1~0.5m;

Test height:<1.5m

Ultra high detection sensitivity

Can detect half the size of a paper clip; No error

Original alarm function

Metal objects passing through the middle will also be alarmed

Intelligent resolution

Can distinguish ferromagnetic and non ferromagnetic metals

Ultra low detection height

Can detect metal more than 2cm above the ground

Metal size display

In case of alarm, the indicator light will show the size of metal

Multi location independent detection

18 independent detection locations, 2000 degree sensitivity adjustment

Independent rainproof function

Can work in the open when it rains

Frequency setting

11 frequencies can be set

Electrical reference

EN60950 safety standards

√

Radiation standards reference

EN50081-1

√

Anti-interference standard reference

EN50082-1

√

Strictly enforced Walk Through Metal Detector National standard(GB15210-2003)

√

ISO 9001:2000 certificate

√

OHSAS18001 health certificate

√

ISO14001 environment certificate

√

National standard

√
