Product Introduction
Specification
| Model | Pipeline Diameter (Φmm/In) | Detection |
Air compression (Bar) |
Max.Capacity (L/H) |
Temperature Range (°C/°F) |
Contaminations Rejection Time (Seconds) |
Material of Construction | |
| Accuracy | ||||||||
| (Φmm) | ||||||||
| Fe | SUS | |||||||
| XR-180C-25 | 25mm | 0.2 | 0.4 | 3-5 Bar | 300 |
-5-40°C / 23-04°C |
0.3-5 S |
Steel Plate |
| /9.84'' | ||||||||
| XR-180C-35 | 35mm | 0.3 | 0.5 | 400 |
SUS 201 |
|||
| /13.78'' | ||||||||
| XR-180C-50 | 50mm | 0.5 | 1 | 2000 |
SUS 304 |
|||
| XR-180C-70 | 70mm | 0.7 | 1.2 | 5000 |
|
|||
| XR-180C-100 | 100mm | 1 | 1.5 | 12000 |
|
|||
| XR-180C-120 | 120mm | 1.2 | 2 | 16000 |
|
|||
| XR-180C-150 | 150mm | 1.5 | 2.5 | 25000 |
|
|||
| XR-180C-200 | 200mm | 2 | 3 | 40000 |
|
|||
| XR-180C-250 | 250mm | 2.5 | 3.5 | 60000 |
|
|||
1. The above detection accuracy is the result without materials. The real detection accuracy would be affected according to the material being detected and the working environment.
2. The maximum detection capacity per hour is related with product weight and liquidity, the value of above data sheet is according to the density of water.
3. As our models will continue to be upgraded, please contact with our sales team for the more technical parameters and metal detection solutions.
4. Customized orders are acceptable.
Application

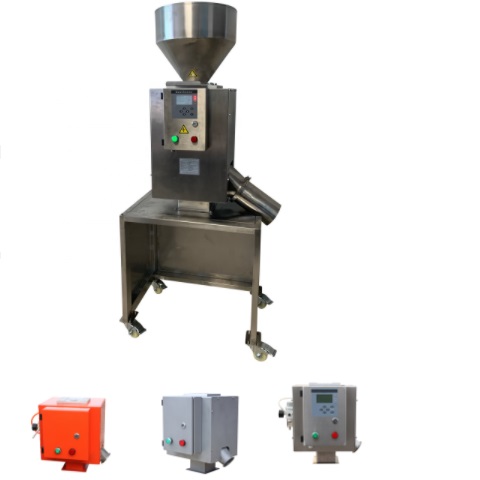

XR-180 Series Vertical Fall Metal Detector Sensor Aperture
FAQ

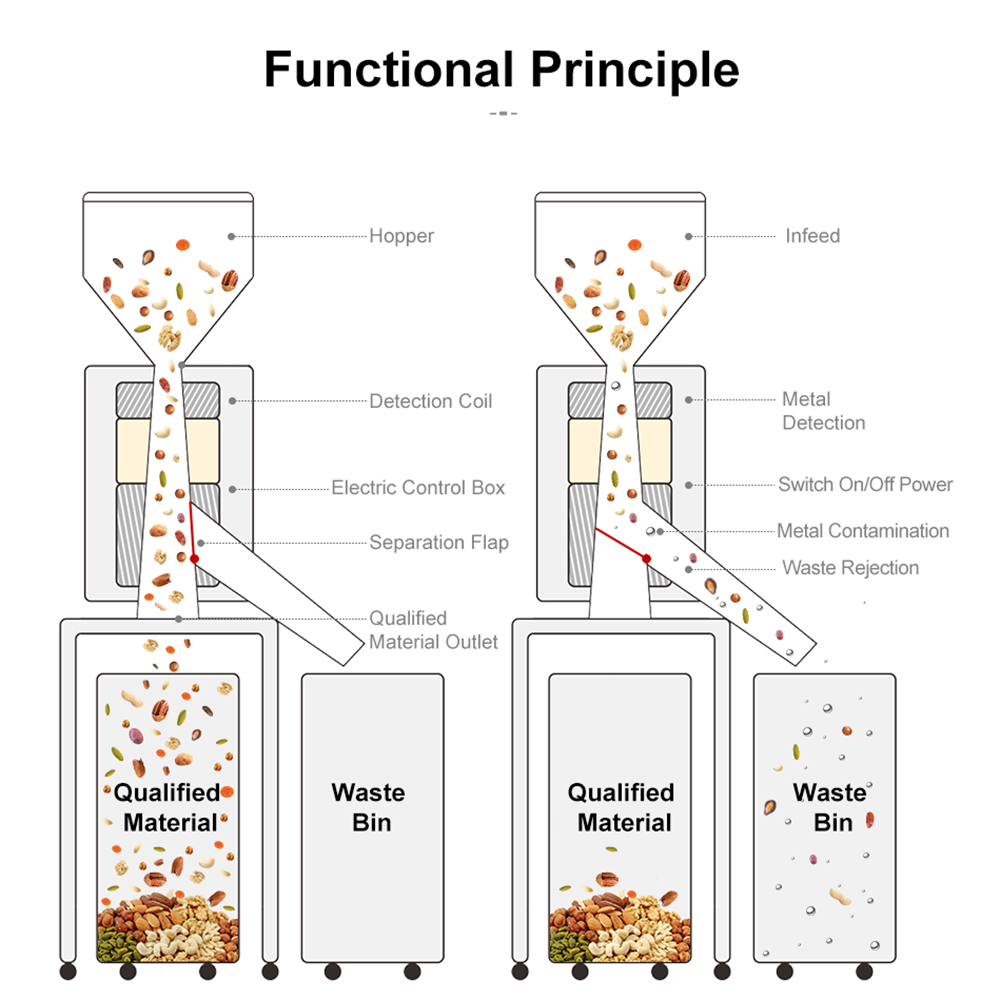

1. How do the Gravity Feed Free Fall Throat Metal Detectors work?
The Gravity Feed Free Fall Throat Metal Detectors is designed for inspecting any free-flowing powders, granules or bulk food products such as Plastic Granules, Sugar, Salt, coffee, flours, Powdered milk, dried fruits dehydrated vegetables, herbs and aromatic seeds, cashew and peanuts.
The Gravity Fall Metal Detection System with high sensitivity fully automatic separation flap device and can reject the metal contaminations during the main products flows through the metal detector aperture, which finally achieve the separation of contaminated products from normal products in high speed.
Therefore, the Throat Metal Detector / Metal Separator has the following advantages:
1. Improve product quality and help the owner to meet QS, HACCP, IFS, BRC and GMP requirements.
2. Minimize the risk of Customer Complaints, Product Recalls, and Wastes Reducing.
3. Protect Production Equipment and Improve Production Efficiency.
4. Reduce the Total Cost of owners.
Main Components
