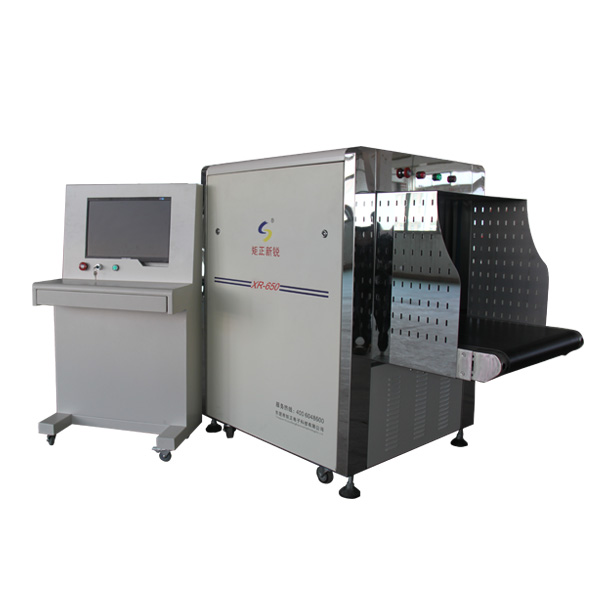

XR-650 X-Ray Security Screening System

Introduce:
Airport Security Scanner, X Ray Equipment for Baggage Inspection, Subway Security Solution Supplier, Cargo Screening Machinery

Online Message

Product Introduction

High performance X Ray Security Screening System for Airport with CE Certificate

1. Effect on film: safe for ISO1600 film

2. Noise of the baggage screening machine: ≤55dB (A)
3. Operation cycle: 100%; pre-heating not required
4. X-ray generator cooling: sealed oil cooling
5. X-ray direction: from the bottom
6. X-ray array: L-shaped array
7. Operating system: Windows XP
8. X-ray volume: no more than 1.22uGy for each inspection

9. X-ray leakage: no more than 0.12uGy/h at 5cm of the machine's outer surface


Security Checking Machine Videos



X-Ray Security Screening System  Screening Images

X-Ray Security Screening System  Screening Images


Specification

Specification
Passageway size 650 mm (width) × 500mm (height)
Conveyor speed 0.22 m/s
Rated conveyor load 250 kg
X-ray volume for single inspection < 1.5µGNy
Machine dimension 2100*1080*1480
Conveyor height 620mm
Resolution 0.0787 mm-diameter metal wire
X-ray penetration 3mm-thick steel plate
Penetration resolution 0.202mm
Spatial resolution horizontal diameter: ≤1.0mm;
vertical diameter: ≤1.0mm;
beam divergence angle: 80°
Working Environment
Temperature/humidity 0℃~45℃/ 20%~95% (non-condensable gas)
Storage temperature/humidity -20℃~60℃/ 20%~95% (non-condensable gas)
Voltage 220VAC (±10%) 50±3Hz
Power loss 1.0KW (max)
Noise < 55dB
Operator station 3-strand cable between operator station and host

X-ray security screening system production process
x-ray security screening system production process



Application

Juzheng offers comprehensive security solutions and full service for both domestic and international big events to guarantee their smooth conducting.

These events include but are not limited to:Dongguan Railway Station, Municipal Court, Provincial Museum, Provincial Gymnasium, the 2017 Ninth China International Fair and the Africa World Cup etc.

Juzheng has shown the world China’s high-tech security products, while thousands sets of x-ray security screening Systemequipment and services are being delivered to venues, media centers and logistic warehouses.

X-Ray Security Screening System application

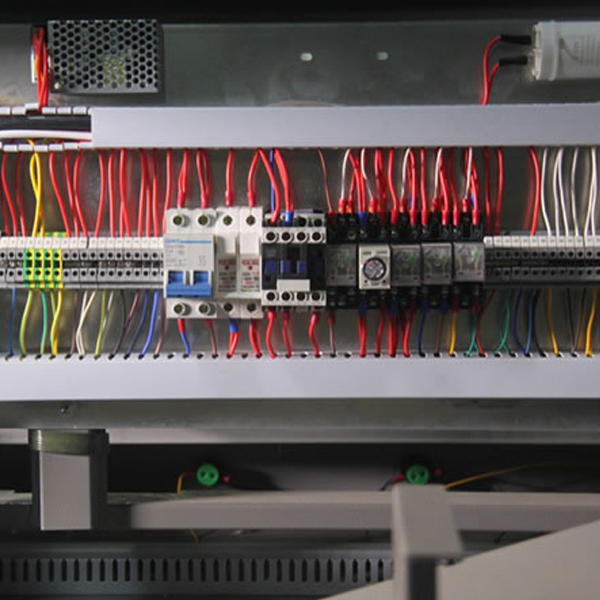

Main Components
