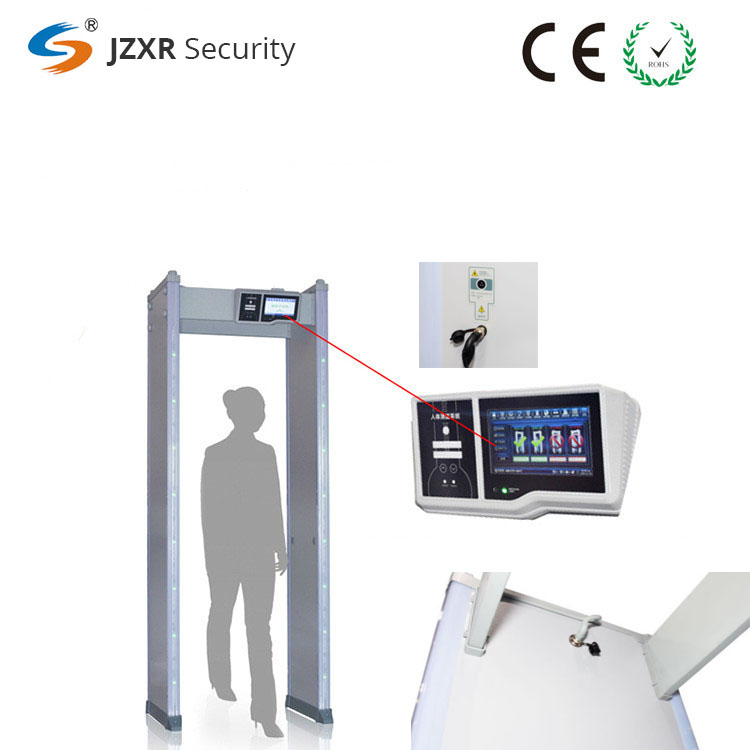

MD-600D/18/24/33 Walk Through Metal Detector

Introduce:
Explosive Trace Detection Portal Machine, Full Body Scanning Machine, Railway Station Body Detector, Airport Security Check Equipment Manufacturer

Online Message

Product Introduction

walk through metal detector

1. The system is designed with 24 detection zones, the sensitivity of each one can be adjusted at will (adaptive adjustment technology)

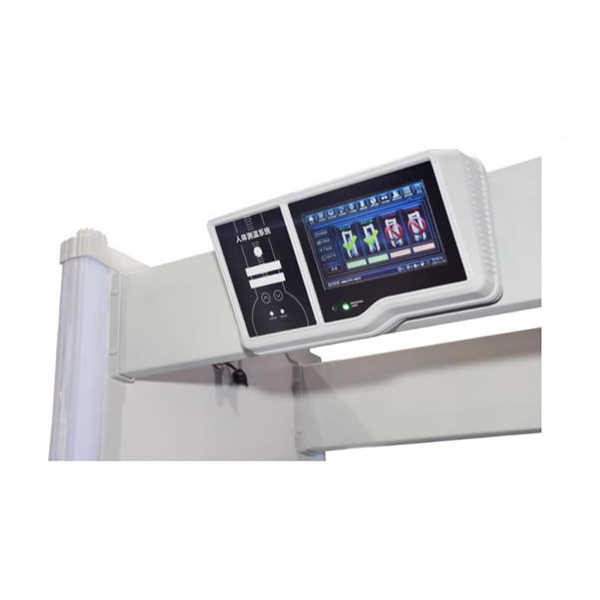

2. Touch screen: easy-operated 7-inch HDMI touchscreen
3. Mobile interconnection technology: operators can manipulate it remotely through APP (optional)
4. Shell protection: excellent IP55 protection
5. Self-diagnosis system: the airport security check machine will check itself once started
6. Self-adjustment system: standards for detection can be adjusted automatically after entering debug mode
7. Start and stop technology: the infrared device starts and stops the system automatically
8. Alerting: alerting light and sound is adjustable
9. Working frequency: manual or automatic frequency conversion
10. Detection technology: no blind spot
11. Expert detection program: detection standards for 60 different occasions are inserted (upgrade service is available)
12. Frequency band: 100 levels
13. Safety: 100 levels
14. Sensitivity: 0-255 grade for each detection zone
15. Alert sound: several sounds are available for different occasions
16. Data record: pass and return data record
17. Data query: real-time data query
18. Smart standby: intelligent standby remind, with 16 ultra-bright LED indicators

19. Detection capacity: 60-150 passes in 1 minute


Walk Through Metal Detector

Specification

The MD-600A Walk Through Metal Detector is fully compliant with the NIJ-0601.02 Standard, as required in very high sensitivity applications, which also allows very high throughput in high security public screening checkpoints.


Detector dimension 2240x670x860mm
Passageway size 200 0x700mm
Panel size 2280x700x290mm
Main chassis/panel net weight 67kg
Main chassis/panel gross weight 75kg
Voltage AC90V~240V50 / 60Hz
Power 20W
Frequency range 1-50 bands
Environment temperature -20℃~6 5℃
Space required 100cm* 200cm (W*L)
Metal detection accuracy ≥ 6g

Application

The MD-600A Walk Through Metal Detector is mainly used in government agencies, public security organs, procuratorates, courts, prisons, detention centers, customs, airports, stations, stadiums, exhibition venues, entertainment venues, large-scale gatherings, and hardware, electronics, jewelry, military, coinage and other factories or business etc.

walk through metal detector application
