Product Introduction
1. MD-600Z metal detector comes with simple and elegant panel, easily-operated buttons, and English/Chinese language selection; remote control is optional
2. Patented structural parts; windproof, damp-proof, and dust-proof design
3. The system featuring excellent performance, high sensitivity, and great stability is able to detect small metal sheet with a weight of 6g
4. The body detection system is designed with multiple probes, detection regions, and launch and receiving units.
5. Interactive detection technology is employed
6. Sensitivity can be set separately for each detection zone to eliminate the interference from key, belt buckle, bra, and phone, etc.
7. The frame is made from thickened high-strength high-pressure laminate (HPL). The one-shot aluminum column having been given antioxidant treatment features high hardness and no deformation
8. The weapon detection system is easily-assembled, solidly-structured, and highly stable with the metal chassis and patented countersunk head bolt
9. The ultra-bright double-row alerting indicators show clearly where the prohibited items are hidden
10. Users can set the volume of alerting sound at will
11. The full body scanner can be connected to network via PC or software, making it ideal for large event, race, and users who need to manipulate several equipment at the same time
12. Auxiliary devices like tripod turnstile, wing gate, access control, and attendance machine are available
13. With a system upgrading port, users can upgrade it for a secondary development. We offer free upgrade service for lifetime
14. The patented 3D infrared system helps prevent interference from strong light and day light
15. A unique infrared system start and stop technology makes the body screening machine a reliable choice for users' need
16. Stability of the system is well guaranteed by all-encased high heels and double-fulcrum design, which is unaffected by uneven ground
17. Both sides of the door are equipped with power interface
2. Patented structural parts; windproof, damp-proof, and dust-proof design
3. The system featuring excellent performance, high sensitivity, and great stability is able to detect small metal sheet with a weight of 6g
4. The body detection system is designed with multiple probes, detection regions, and launch and receiving units.
5. Interactive detection technology is employed
6. Sensitivity can be set separately for each detection zone to eliminate the interference from key, belt buckle, bra, and phone, etc.
7. The frame is made from thickened high-strength high-pressure laminate (HPL). The one-shot aluminum column having been given antioxidant treatment features high hardness and no deformation
8. The weapon detection system is easily-assembled, solidly-structured, and highly stable with the metal chassis and patented countersunk head bolt
9. The ultra-bright double-row alerting indicators show clearly where the prohibited items are hidden
10. Users can set the volume of alerting sound at will
11. The full body scanner can be connected to network via PC or software, making it ideal for large event, race, and users who need to manipulate several equipment at the same time
12. Auxiliary devices like tripod turnstile, wing gate, access control, and attendance machine are available
13. With a system upgrading port, users can upgrade it for a secondary development. We offer free upgrade service for lifetime
14. The patented 3D infrared system helps prevent interference from strong light and day light
15. A unique infrared system start and stop technology makes the body screening machine a reliable choice for users' need
16. Stability of the system is well guaranteed by all-encased high heels and double-fulcrum design, which is unaffected by uneven ground
17. Both sides of the door are equipped with power interface
18. Password management technology is available
Specification

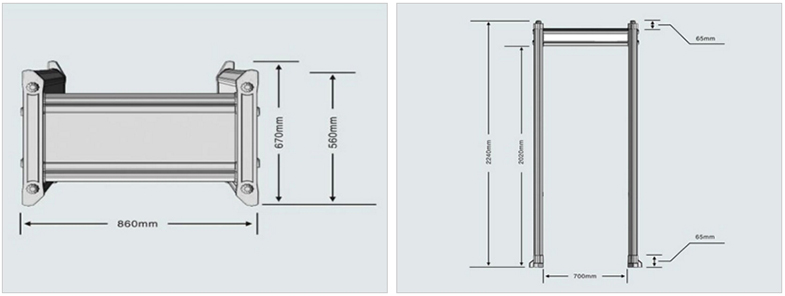

| Detector dimension | 2240x670x860mm |
| Passageway size | 2020x700mm |
| Main chassis size | 755x435x255mm |
| Panel size | 2290mmx715mmx200mm |
| Main chassis/panel net weight | 67kg |
| Main chassis/panel gross weight | 75kg |
| Voltage | 210V~240V 50/60Hz |
| Power | 25W |
| Frequency range | 1-50 bands |
| Environment temperature | -20℃~55℃ |
| Space required | 100cm* 200cm (W*L) |
Walk Through Metal Detector Videos

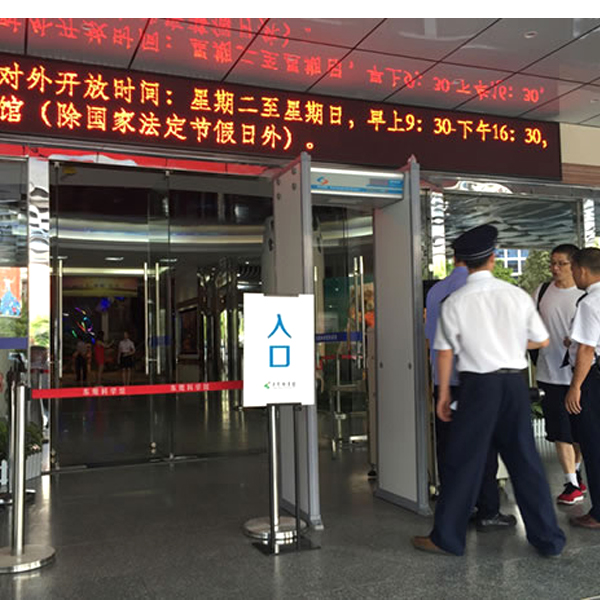

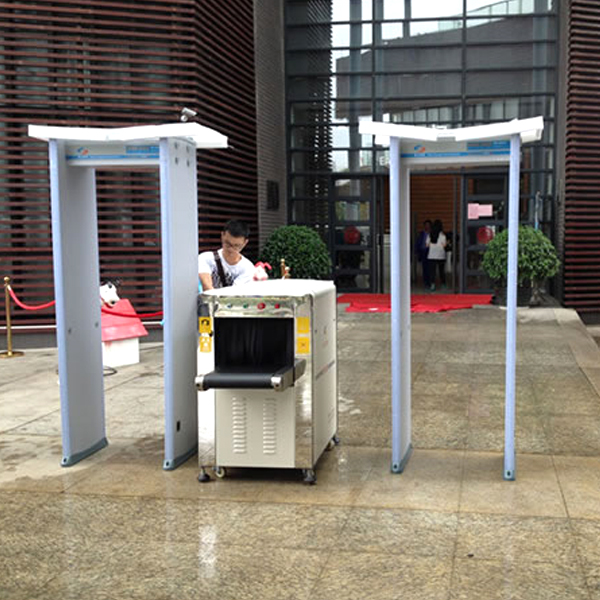

Application
